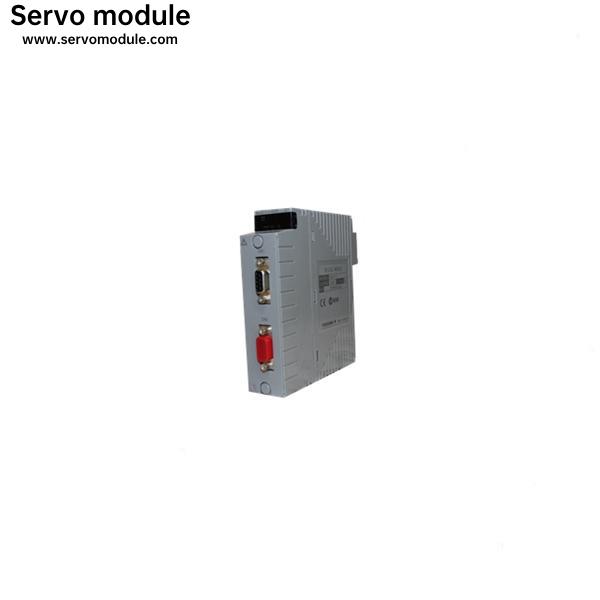

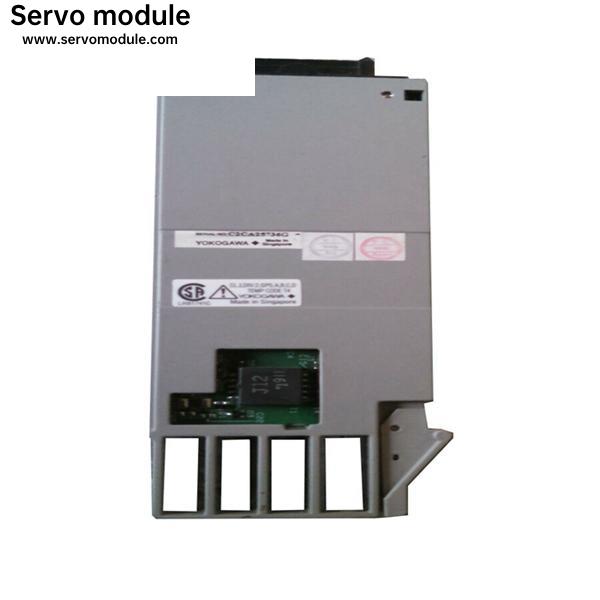

Yokogawa ADV559Digital Output Module

YokogawaControl Drawing

Small control groups composed by function blocks and inputs/outputs are to be described in the control drawings. Engineering and maintenance works are simplified by unifying the process device control as a control drawing. Monitoring the whole plant or each process can also be specified as control drawings instead of specifying individual process unit or functions in between the different devices. The features of control drawings are described below.

- Connecting I/O and control blocks By connecting a line between the I/O and function block, or between the function blocks, the data flow definition can be visualized.

- Defining the order of control block implementation The implementation priority or order of performance can be determined among several function blocks described in the control drawing.

- Mix of Regulatory Control and Sequence Control Regulatory control and Sequence control can be mixed in Control drawing. Control functions can be flexibly configured according to the requirement for process.

- Free Signal Flow between Control Drawing Function block belonging to different Control drawing can be connected to another Control drawing.

FAQ:

1.Is the part new?
Yes, 100% Original brand new

2.How is the package?
Original factory seal packed

3.What is the lead time?
In stock: 1-3 working days

4.What is the MOQ:
1pcs

5.What is the payment term:
TT and Western Union, other negotiable

6.Where the item ship from?
Xiamen

7.What is the warranty time?
One year

8. How to delivery the PLC Parts?
Kindly tell us your address,we check best cost for you
Or you can use your own courier account or agent, DHL, FEDEX, UPS etc are available.
