Description

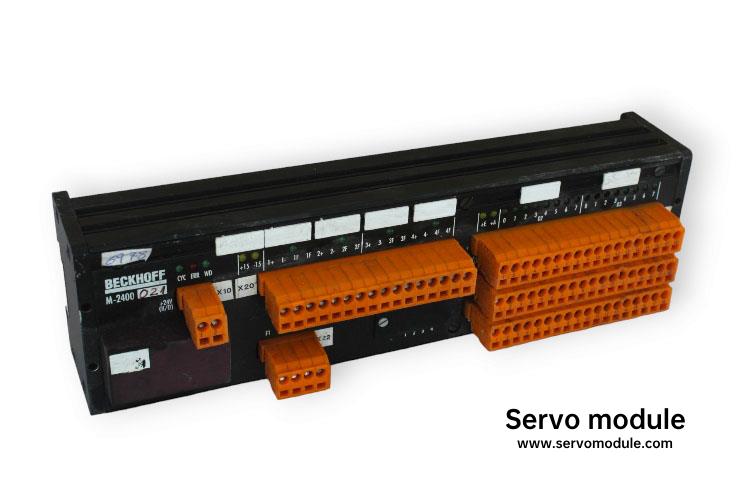

Manufacturer: Beckhoff
Type: Analog Output Module
Model: M2400021

No. of Analog Outputs: max. 4
Supply Voltage: 24 V DC
Analog Specifications: Uout = ±10 V , Iout = 0 to 20 mA Resolution : 12 Bit
Rise time: 10 us von -10V ==> +10V
No. of Inputs / Outputs: 16, can be configured for each port; LED shows state of all inputs / outputs
Input Specifications: 24 V DC, 10 mA, digital filter
Output Specifications: 24 V DC, max. 500 mA, short circuit proof
Input switching voltages: (0… 8 V = LOW/15 … 24V = HIGH)
Input delay Time: 0,7 ms RC network/ 6,8 ms input latch
Connections: a) can be connected for digital I/O ; +,-,signal
b) for analog output; signal,-,potential free contact, 1 permission input 24 VDC for each channel
Data Connection: fibre optic II/O system
Transmission Rate: 2,5 MBaud, 25 µs for 32 Bit
Working Temperature: 0 … +55°C
Dimensions: 270 x 76 x 68 mm
