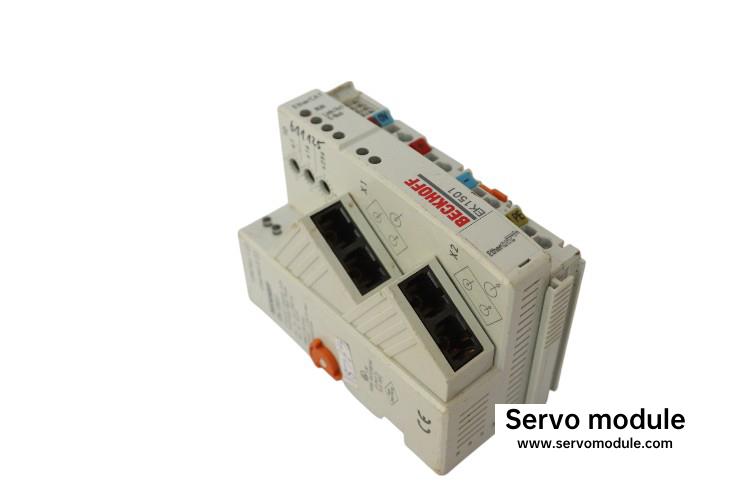

Beckhoff EK1501 EtherCAT Coupler

The Beckhoff EK1501 EtherCAT Coupler is a reliable and efficient solution for connecting EtherCAT devices in industrial automation systems. With a 24 V DC power supply, this coupler is designed to provide seamless communication and integration of devices in industrial networks. It features a compact terminal housing with signal LEDs for easy monitoring of the coupler™s status. The unit provides 2000 mA of E-bus current supply and offers electrical isolation of 500 V, ensuring secure and reliable operation in industrial environments. The coupler™s current consumption from the supply is 130 mA, plus the sum of E-bus current divided by four. The unit is designed for installation on a 35 mm DIN rail, making it suitable for standard industrial control panels. The Beckhoff EK1501 EtherCAT Coupler supports side-by-side mounting through double slot and key connection for efficient system integration.

Manufacturer: Beckhoff

Type: EtherCAT Coupler

Model: EK1501

Technical Information:

• Power Supply: 24 V DC
• Design Form: Compact terminal housing with signal LEDs
• Current Supply E-bus: 2000 mA
• Electrical Isolation: 500 V
• Stripping Length: 8 / 9 mm
• Current Load Power Contacts Imax: 10 A
• Current Consumption from US: 130 mA + (ˆ‘ E-bus current/4)
• Current Consumption from UP: Load
• Installation: On 35 mm DIN rail
• Degree of Protection: IP20
• Material: Polycarbonate
• Side by Side Mounting by Means of: Double slot and key connection
• Operating Temperature: -25°C to +60°C
• Dimensions (W x H x D): 51 mm x 100 mm x 69 mm

Offering exceptional performance, the Beckhoff EK1501 EtherCAT Coupler is perfect for a wide range of industrial applications requiring reliable data communication and efficient system integration.
