Description

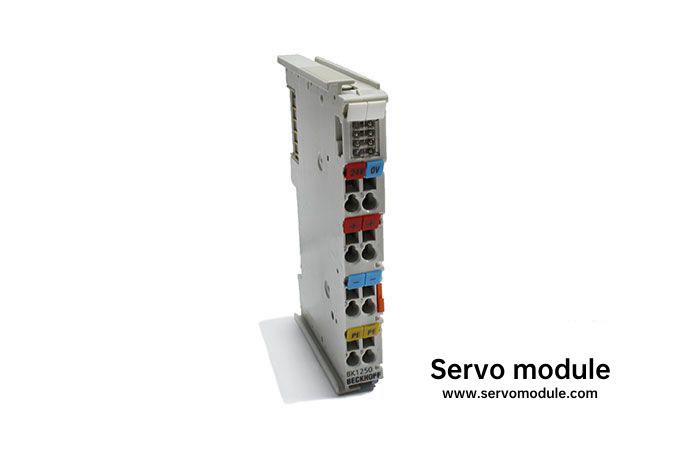

Manufacturer: BECKHOFF

Type: Ethercat to K-Bus Coupler

Model: BK1250

No. of Bus Terminals: 64 (255 with K-bus extension)

Max. Number of Bytes Fieldbus: 1024 byte input and 1024 byte output

Digital Peripheral Signals: 8.192 inputs/outputs

Analog Peripheral Signals: 256 inputs/outputs

Protocol: EtherCAT

Power Supply: 24 VDC

Input Current: 70 mA + (total K-bus current)/4.200 mA max

Recommended Fuse: ≤ 10 A

Current Supply K-Bus: 500 mA

Power Contacts: max. 24 V DC/max. 10 A

Electrical Isolation: 500 V (power contact/supply voltage/Ethernet)

Operating Temperature: -25…+60 °C

Protection Class: IP20

Dimensions: 12 X 100 X 68 mm

Weight: Approx. 0.05 Kg
