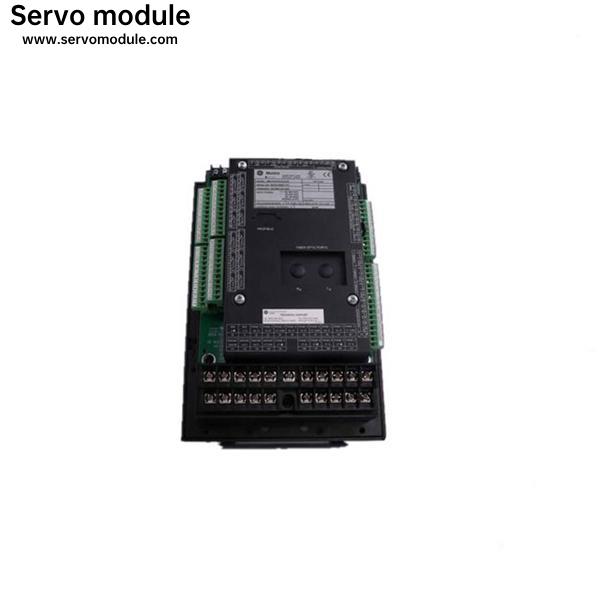

GE Fanuc IC670CHS102A I/O Term, Block 2 Tier Box Terminal

Positive or Negative Inputs

Inputs for this module can be either positive or negative inputs (all 16 inputs must be the same type). Both types of signal produce a logic 1 (true) when the switch is closed. Selection of positive or negative operation is made by the manner in which the external power supply is connected to the inputs and to the I/O Terminal Block.

Positiveinputs receive current from input devices and supply current to the common or negative power bus. Input devices are connected between the positive power bus and the input terminals.

Negativeinputs provide current to input devices and accept current from the common or positive power bus. Input devices are connected between the negative power bus and the input terminal.

Our Advantage

ICS Triplex T8461,ICS Triplex T8311,ICS Triplex T8431,ICS Trusted Triplex T8310
All Yokogawa CP401-10,SCP461-51,Yokogawa CP451-10,ALR121-S50 Are Availabe
We Also Sell Emerson DeltaV EPRO Yokogawa Products,Call US Now.

Courier partners: DHL, UPS, TNT, FedEx.
Technical specification, manuals and data sheets: Available on request.
