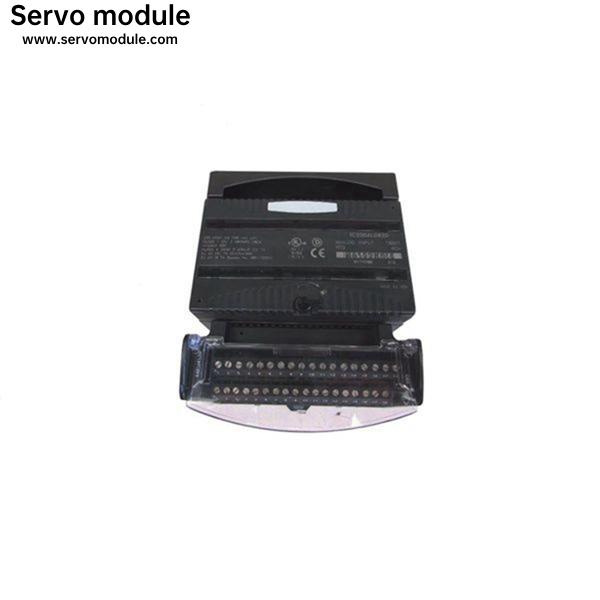

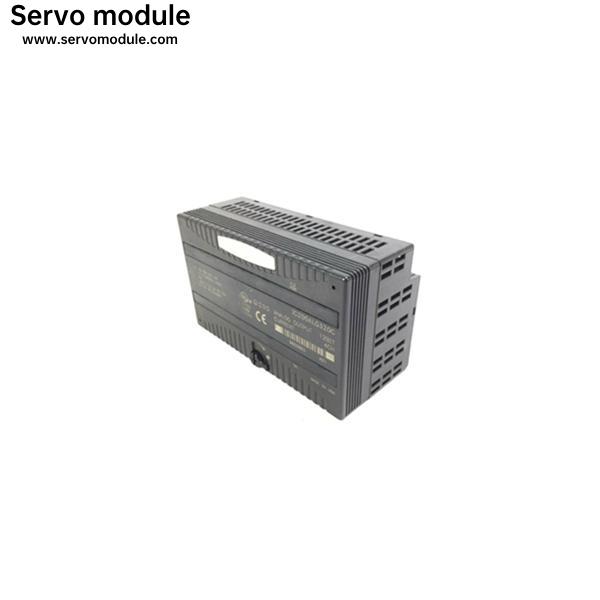

GE FanucIC693MDL6545/12 volt DC (TTL) Positive/Negative Logic Input module

Description

The module consists of LED indicators listed as;A1 - A8, B1 - B8, C1 - C8, D1 - D8located at the top of the module. The indicator providesON/OFFstatus of every input point. The input current is3.0 mA (typical ON current at 5 VDC) and 8.5 mA (typical ON current at 12 VDC).IC693MDL654 is of32-point input design which uses 32 bits of discrete %I input data. It can be placed on an I/O port on a 5 or 10-slot baseplate in a Series 90-30 PLC system. Current from an input point leads to logic 1 within the input status table. Rated Voltage for IC693MDL654 is5 to 12 volts DC, Positive or Negative Logic while the Input Voltage Ranges from0 to 15 volts DCLinks to the input circuits are created from the user’s input devices to two male (pin-type) 24-pin connectors (Fujitsu FCN-365P024-AU) placed on the front of the module. This link placed on the front viewpoint borders between class A and B.The another one on the left side borders class C and D.A cable that has a female connector on a single end with wires which is stripped enhancesfield wiringto field devices from modules connectors.
