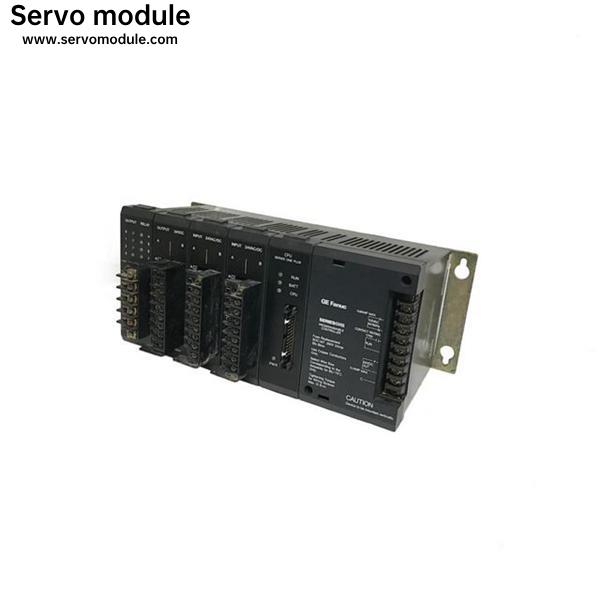

GE Fanuc IC200MDL740D Module12 Months Warranty

Description

Communication between the controller and the I/O packs is performed with the internal IONet. This is a 100 MB Ethernet network available in non-redundant, dual redundant, and triple redundant configurations. Ethernet Global Data (EGD) and other protocols are used for communication. EGD is based on the UDP/IP standard (RFC 768). EGD packets are broadcast at the system frame rate from the controller to the I/O packs, which respond with input data. IONet conforms to the IEEE 802.3 standard. It is supplied as 100BaseTx and 100BaseFx (fiber) for greater distances, noise rejection, lightning immunity, and ground immunity. A star topology is used with the controller on one end, a network switch in the middle, and I/O packs at the end.The operator interface is commonly referred to as the Human-Machine Interface (HMI). It is a computer with a Microsoft® Windows-based operating system, client/server capability, a CIMPLICITY® graphics display system, and software maintenance tools (ToolboxST). It can be applied as: • Primary operator station for one unit or the entire plant • Maintenance station gateway • Engineers station • Gateway for communications All local and remote data in the Mark VIe is accessible for screens with high-resolution time tags for alarms and events. The HMI can be re-initialized or replaced with the process running with no impact on the control system. It communicates with the main processor board in the Mark VIe controller(s) through the control network Unit Data Highway (UDH) and to third-party control and monitoring systems through the information network Plant Data Highway (PDH).
