100% Brand New Original Plc Inverter Best Price IC693MDL940
Description

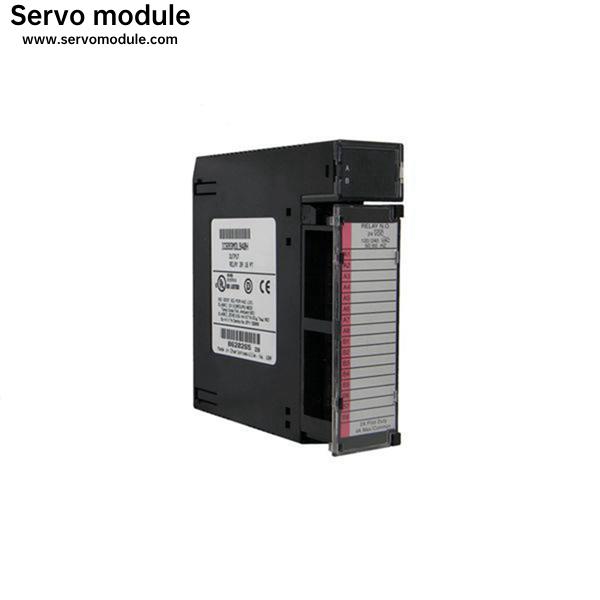

The GE Fanuc IC693MDL940 is a relay output module. Uses of this module are to control load devices like indicators, solenoids and motor starters. This module requires a switching capacity of 2A and requires a 24V DC power supply. The power supply is located on its backplane and supplies power to the module through the bus. When the IC693MDL940 involves suppression circuits, the contact life of the relay approaches the contact life of the resistive loads while switching into inductive loads. The DC and AC loads use different circuits from each other. The DC load uses the suppression circuit containing 200V diode of 1A current capacity. The suppression circuit of the AC load uses the standard components which are capacitors and resistors.
The IC693MDL940 operates in the voltage range of 5V to 30V DC supply. At the frequency range of 50Hz to 60Hz, it operates in the voltage range of 5V to 250V. Also, the module uses 16 output points in four groups containing four output points in each group. This module encounters the maximum load of 2A per output and 4A per common. The minimum load encountered is 10mA.The top of the module IC693MDL940 hosts a LED indicator which indicates the status of output points. The inside surface of the module provides the wiring information of the circuit.Either of the DC or AC power supply operate the field devices. This module does not use the fuses. The response time for switching on/off is 15msec. In 90-30 series PLC system, the user can also use the IC693MDL940 in any of the slots of the baseplate.
