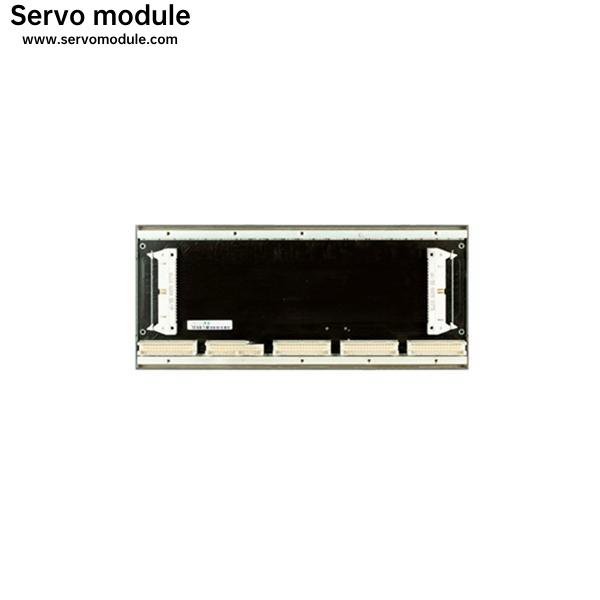

Bachmann ElectronicBS206 00009792-00Backplanes Module

Overview

BS206 is one ofBS200 Backplanes.The backplanes BS200 interconnect the M1 controller hardware modules, such as power supplies, CPU modules and input /output modules, mechanically and electrically. They are the backbone of the controller. The DIN rail adapters S20x are mechanically identical in construction, without electrical function and they are used for solitary modules without backplane bus and supply.

1 to 16 module slots

Seamless connection/ possible

Stabile mechanics / compact design

Vibration proof fixing of modules

Can be snapped on EN 60715 DIN rail

BS200 Backplanes in Stock

Bachman S201 00009542-00 DIN rail adapter without electrical connections; 1 slot
BachmanS202 00021588-00 DIN rail adapter without electrical connections; 2 slots
BachmanS203 00023028-00 DIN rail adapter without electrical connections; 3 slots
BachmanS205 00032172-00 DIN rail adapter without electrical connections; 5 slots
BachmanBS201 00010507-00 Backplane with 1 module slot
BachmanBS202 00009802-00 Backplane with 2 module slots
BachmanBS203 00009313-00 Backplane with 3 module slots
BachmanBS204 00009752-00 Backplane with 4 module slots
BachmanBS205 00009206-00 Backplane with 5 module slots
BachmanBS206 00009792-00 Backplane with 6 module slots
BachmanBS207 00009207-00 Backplane with 7 module slots
BachmanBS208 00009793-00 Backplane with 8 module slots
BachmanBS209 00009634-00 Backplane with 9 module slots
BachmanBS210 00009794-00 Backplane with 10 module slots
BachmanBS211 00009795-00 Backplane with 11 module slots
BachmanBS212 00009796-00 Backplane with 12 module slots
BachmanBS213 00009797-00 Backplane with 13 module slots
BachmanBS214 00009798-00 Backplane with 14 module slots
BachmanBS215 00009799-00 Backplane with 15 module slots
BachmanBS216 00009800-00 Backplane with 16 module slots
