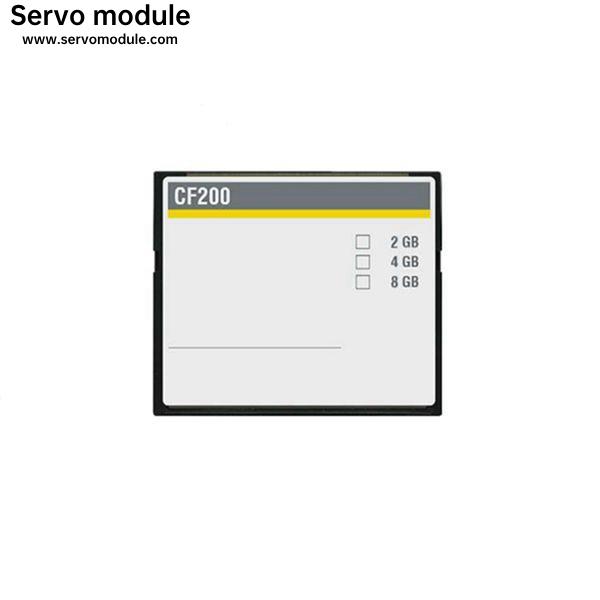

Bachmann 00016586-00 CF200/4GB CF200 UDMA Compact Flash Memory Card in Stock
Overview
CF200/4GB UDMA 00016586-00 is CF200 UDMA Compact Flash Memory. Given the high availability demands placed on automation systems, program and data memory must be selected with particular care. The Compact Flash memory cards CF200 are therefore especially selected industrial types that can cope with the requirements of harsh daily working routines. Use of the CF200 both in CPUs of the M1 family and in CT and WT devices is strongly recommended due to the extreme environmental conditions, the large number of supported write cycles and the many years of lasting experience with suppliers.
Compact Flash type I according to Compact Flash specification
Memory capacity 2/4/8 GB
Very fast data transfer (UDMA)
Write protection via operating software
Extended temperature range
Long service life / MTTF
CF200 UDMA Specifications
| Memory type | Compact Flash Type I |
| Memory capacity | 2/4/8 GB |
| Data transfer rate | Up to 66 MB/s (UDMA 4 burst) |
| NAND flash type | SLC |
| Operating voltage | 3.3 V / 5 V (automatic adaptation) |
| Read / write cycles | > 100,000 |
| MTBF at 25 °C | >3,000,000 h (depending on free memory) |
| Vibration | 20 G 20 Hz to 2 kHz |
| Shock | 1500 G half cycle 0.5 ms |
CF200 UDMA Series
Bachmann CF200/2GB UDMA 00013163-00 Compact-Flash Karte 2GB UDMA
Bachmann CF200/4GB UDMA 00016586-00 Compact-Flash Karte 4GB UDMA
Bachmann CF200/8GB UDMA 00016587-00 Compact-Flash Karte 8GB UDMA
