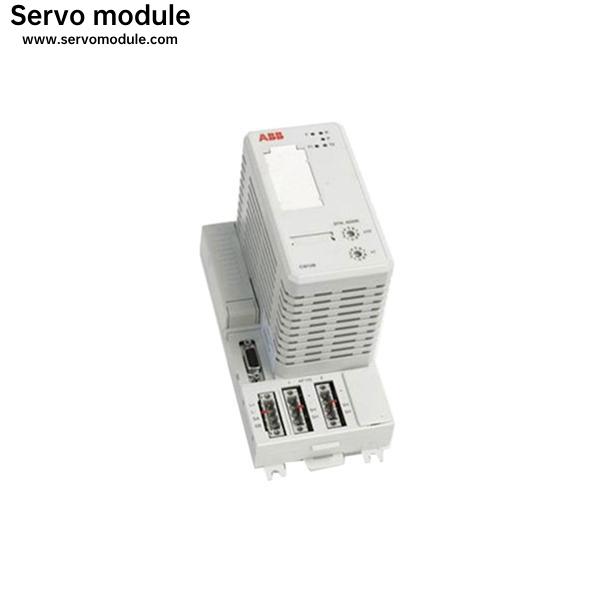

ABBCI840A3BSE041882R1S800 I/O Communication Interfaces
S800 I/O is a comprehensive, distributed and modular process I/O system that communicates with parent controllers and PLCs over industry-standard field buses.S800 I/O is used in applications around the world by numerous industries and control systems.Communication interface between the CI801 or CI840/ CI840A FCI and the TB820/ TB820V2/TB840/TB840A ModuleBus Modem of an I/O cluster or ABB drives units via the Optical ModuleBus. TB842 connects to CI801 via TB806 and to CI840/CI840A via TU847 and TB806 for single I/O or via TU846 and TB846 for redundant I/O.
Specifications
| Part No. |
CI840A |
| Product ID |
3BSE041882R1 |
| Catalog Description |
CI840A PROFIBUS DP-V1 Interface |
| Catagories |
S800 I/O - Field Communication Interfaces |
| Medium Description |
For redundant communication interface two CI840A, and one TU847 or one TU846 must be ordered |
| Feature |
Redundant CI840/CI840A,
Single I/O |
| Same Series |
CI801 3BSE022366R1,CI840A3BSE041882R1,CI845 3BSE075853R1 ,TC810 3BSE076220R1,TC8113BSE078714R1 |
Related S800 I/O Communication interfaces
| S800 I/Ointerfaces | CI840A | CI801 | CI845 | TC810 |
| Article number | 3BSE041882R1 | 3BSE022366R1 | 3BSE075853R1 | 3BSE076220R1 |
| Function | PROFIBUS-DPV1 fieldbus communication interface. Isolated power supply to I/O modules. | PROFIBUS-DPV1 fieldbus communication interface. Isolated power supply to I/O modules. OSP handling and configuration. | Ethernet fieldbus communication interface. Use as single or redundant, together with TC810 or TC811 and TU860. | Ethernet Adapter for copper media with built in 2-port switch. Supports both Select I/O and S800 on Ethernet. |
| Redundant | Yes | No | Yes | Yes |
| Power Supply Monitoring Inputs | Max. input voltage: 30 V Min. input voltage for high level: 15 V. Max. input voltage for low level: 8 V | N/A | N/A | N/A |
| Power Input | 24 V d.c. (19.2 - 30) | 24 V d.c. (19.2 - 30) | 24 V d.c. (19.2 - 30) | 24 V d.c. (19.2 - 30) |
| Power Input Fuse | 2 AF | 2 AF | 2 AF | 2 AF |
| Power Dissipation | 7.7 W | 5.4 W | 5 W | 0.8 W |
