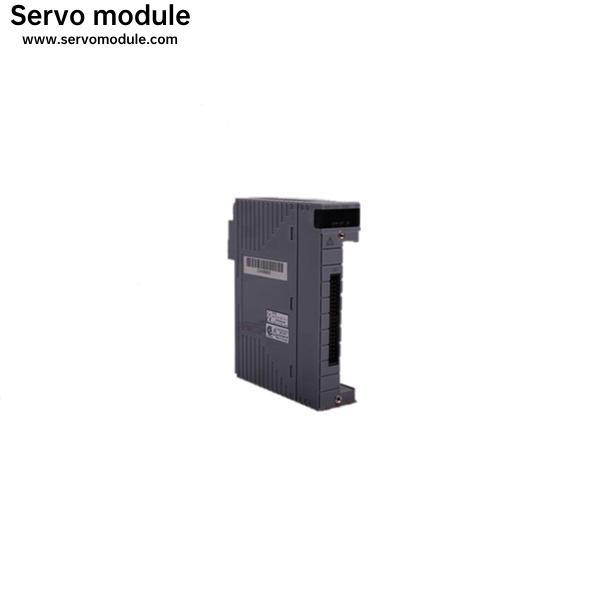

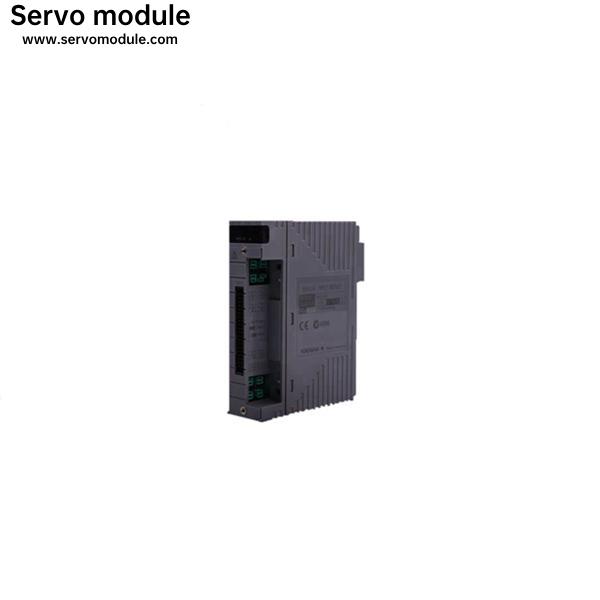

Yokogawa SNT411-13Brand New And Original

Information

Leave space at the top and bottom of rack-mount equipment to permit heat radiation.

-Separate the top of the instrumentation board at least 100 mm away from the ceiling, and cut a ventilation hole of 200 cm2 or larger in the ceiling or install a ventilation fan.

-Keep at least 50 mm between the back of the equipment and the instrumentation panel or wall. • When installing a 19-inch rack-mount device on the same rack, maintain a 3-unit spacing (1 unit: 44.45 mm) between devices. Do not use any space between equipment for cable wiring or anything.

-Do not block ventilation openings in the top and bottom face of the equipment.

When mounting devices in the 19-inch rack, the mounting plate cut out of the instrumentation panel, and so on, leave an area for servicing.

Isolate the rack-mountable devices from the rack by attaching insulating bushings. Fasten a pair of insulating bushings together to each of the screw holes on the plate or the bracket on the devices to prevent the devices from touching the rack. And then screw the devices to the rack. After screwing the devices to the rack, confirm that the device is electrically isolated. insulating bushings are supplied with rack-mountable devices.

Brand introduction

Yokogawa Electric Group was founded in 1915 with its headquarter in Tokyo, Japan.

It has 88 subsidiaries in 55 countries and regions.

It is one of the world's most professional multinational companies in the industrial control industry.

In 1975 the first developed the first set of epoch-making significance in the world of distributed control system (DCS system), the production process of petroleum, chemical and other large factories to run the measurement, monitoring and control, to the development of the industry and the progress of the society has made a great contribution, so far has successively launched seven generations CENTUM DCS series products, field instruments such as flow meter, transmitter, analyzer also received high praise by the user.
