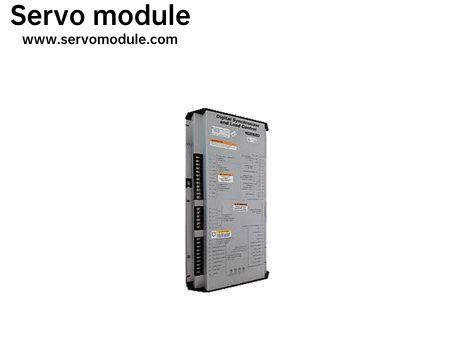

Woodward 9905-796 Control Unit
Description
The Woodward 9905-796 is a Digital Synchronizer and Load Control (DSLC) unit designed for three-phase AC generators. It is a reduced upgrade model that lacks power factor control and process control functions. This unit is tailored for environments requiring reliable synchronization and load control.
Features
- Digital Technology: Utilizes digital technology for its operation, involving microcontrollers or digital signal processors.
- Synchronization: Ensures that the frequency, phase, and voltage levels of different sources match before they are connected to the power grid.
- Load Control: Manages the distribution of loads among different generators to optimize efficiency and prevent overloading.
- Automation: Comes with automation capabilities, allowing it to perform functions without constant manual intervention.
- Monitoring and Protection: Includes monitoring functions to track the health and performance of generators or loads, and protection mechanisms to prevent damage in case of abnormal conditions.
- Communication: Capable of communicating with other control systems, providing information and receiving commands to ensure coordinated operation.
- Integration: Integrates with other control and monitoring systems within a power plant or grid.
- Part Number: 9905-796
- Manufacturer: Woodward
- Product Type: Digital Synchronizer Load Control Module
- Input Voltage: 120 Vac
- Speed Bias Output: ±3 VDC
- Operating Temperature: -40°C to +70°C
- Storage Temperature: -55°C to +105°C
- Weight: Less than 7 lbs
- PT Configuration: Open Delta
- Nominal Voltage: 120 Vac
- Signal Input Impedance: 33K Ohms
- Display: 24-character LEDs
- Power Supply Transient Protection: 900 Vdc
