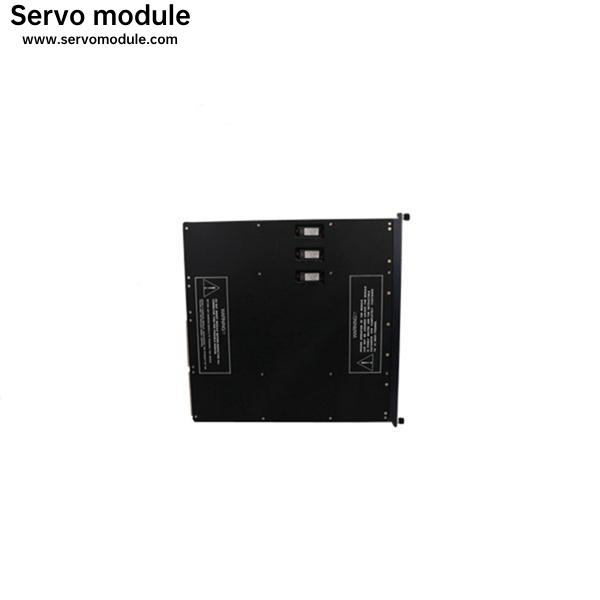

Triconex DO 3401 Digital Output PLC Module

Digital Output Module

Every digital output module houses the circuitry for three identical, isolated channels. Each channel includes an I/O microprocessor which receives its output table from the I/O communication processor on its corresponding main processor. All of the digital output modules, except the dual DC modules, use special quadruplicated output circuitry which votes on the individual output signals just before they are applied to the load.

Product Specifications

Digital Output Modules Description

115 VAC Opto-Isolated, Non-commoned TMR 3601E/3601T
120 VDC Opto-Isolated, Non-commoned Opto-Isolated, Commoned TMR 3603B, 3603E/3603T
24 VDC Opto-Isolated, Non-commoned TMR 3604E
48 VDC Opto-Isolated, Non-commoned TMR 3607E
115 VAC Galvanically Isolated, Commoned., Supv. TMR 3611E
48 VDC Galvanically Isolated, Commoned, Supv. TMR 3617E
120 VDC Opto-Isolated, Commoned, Supervised TMR 3623/3623T
24 VDC Opto-Isolated, Commoned, Supervised TMR 3624
24 VDC Supervised/Non-Supervised, Commoned TMR 3625
24 VDC Opto-Isolated, Commoned Dual 3664
24 VDC Opto-Isolated, Commoned Dual 3674
Relay Output Non-triplicated, Normally Open Nontriplicated 3636R/3636T
