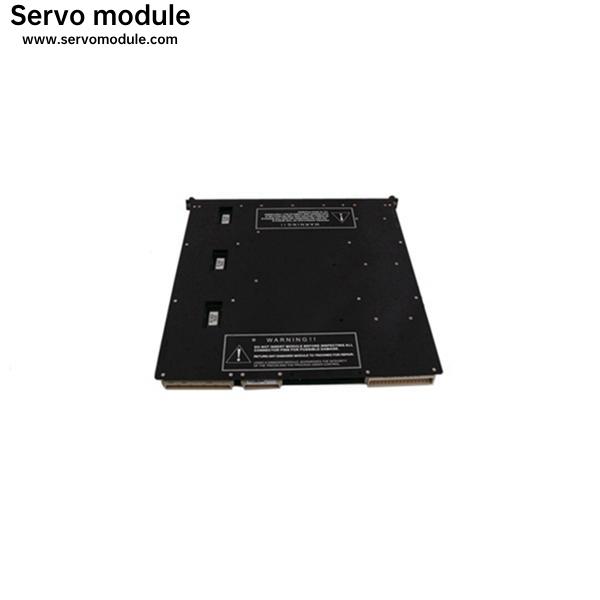

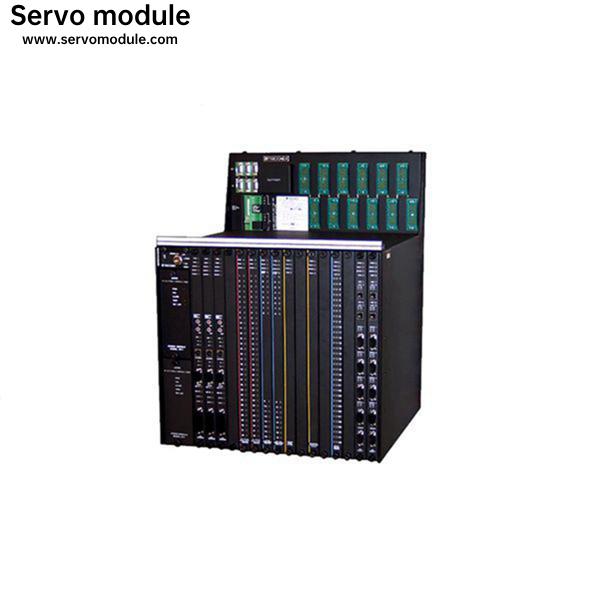

Triconex 3008CPUMain Processor Module

Main Processor Modules

Model 3008 Main Processors (MP) are available for Tricon v9.6 and later systems. For detailed specifications, see the Planning and Installation Guide for Tricon Systems. Three MPs must be installed in the Main Chassis of every Tricon system. Each MP independently communicates with its I/O subsystem and executes the user-written control program.

Triconex 3008 Introduction

Manufacturer: Triconex
Product No.: 3008
Product type: Main processor
Main processor: Motorola MPC860, 32-bit, 50 MHz
Memory: 16 MB DRAM (without battery back-up), 32 KB SRAM (with battery back-up), 6 MB Flash PROM
TriClock: Time and date, Battery back-up, Typical drift: ±2 seconds/day, Maximum drift: ±2.16 seconds/day
TriBus: 25 megabits/second, 32-bit CRC-protected, 32-bit DMA, fully isolated
Serial port: For diagread diagnostic analysis, Optically isolated RS-232 interface on one 25-pin connector, 500 VDC isolation
Communication processor: Motorola MPC860, 50 MHz, 32-bit

Triconex More Types Description

Digital Input
3501E EDI Module, 115V AC/DC
3502E EDI Module, 48V AC/DC
3503E EDI Module, 24V AC/DC
3504E HDDI Module, 24/48 VDC (24V)
3505E EDI Module, 24 VDC, Low Threshold

Digital Output
3601E EDO Module, 115 VAC
3603E EDO Module, 120 VDC (2)
3603T EDO Module, 120 VDC (3603E replacement during Surge test)
3604E EDO Module, 24 VDC
3607E EDO Module, 48 VDC
3611E SDO Module, 115 VAC (3)
3623 SDO Module, 120 VDC
3624 SDO Module, 24 VDC

Pulse Input
3510 Pulse Input Module

Thermocouple
3706A NITC Input Module
3708E ITC Thermocouple Input Module

Relay Output
3636R ERO Module, N.O., Simplex

Miscellaneous
8105 Blank Module Panel
8107 Seismic Balance Module

More Type Modules We Are Applying For You
