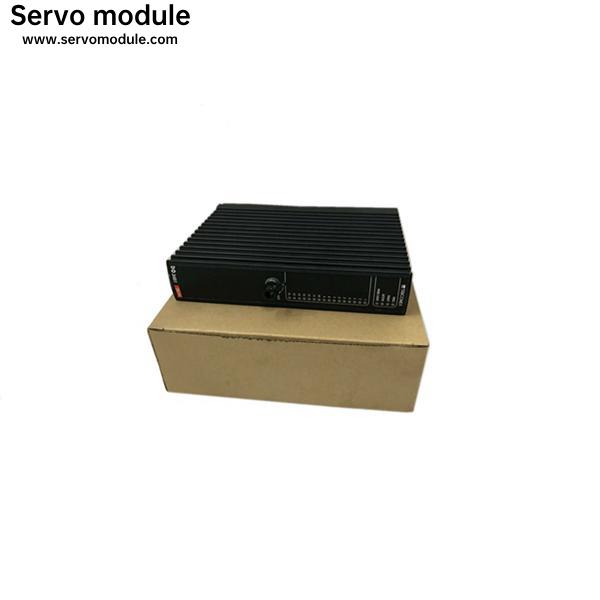

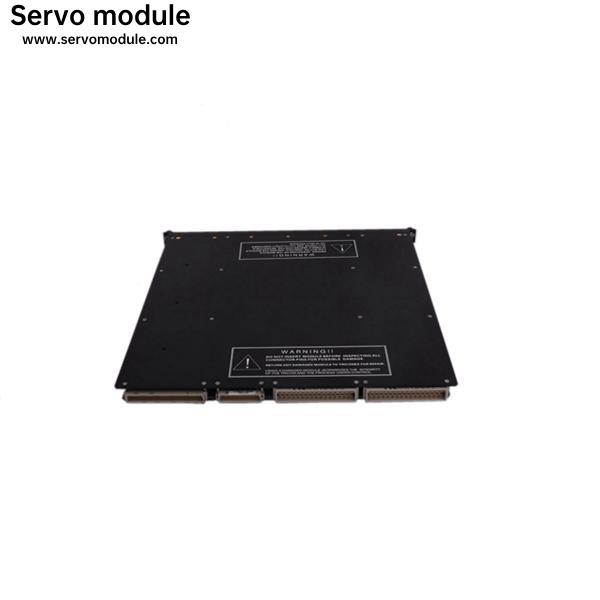

Triconex 3625 Tricon TMR Digital Output Module
TMR Digital Output Modules Overview
Each TMR Digital Output (DO) module receives output signals from the Main Processors on each of three channels. Each set of three signals is then voted by special quadruplicated output circuitry on the module. The circuitry produces one voted output signal and passes it to the field termination. The quadruplicated voter circuitry provides multiple redundancy for all critical signal paths, guaranteeing safety and maximum availability.
Triconex 362532-Point Specifications
| Nominal Voltage | 24 VDC |
| Type | TMR, Supervised/Non-Supervised DO |
| Output Signals | 32, commoned |
| Voltage Range | 16-32 VDC |
| Voltage Drop | < 2.8 VDC @ 1.7A, typical |
| Power Module Load | < 13 watts |
| Point Isolation | 1,500 VDC |
