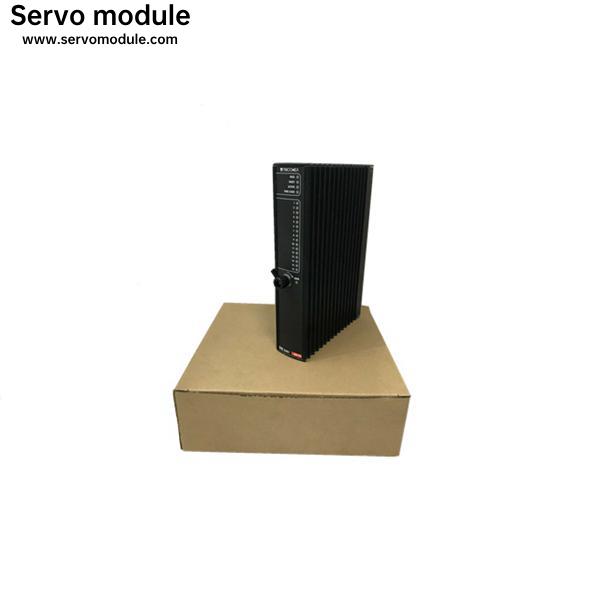

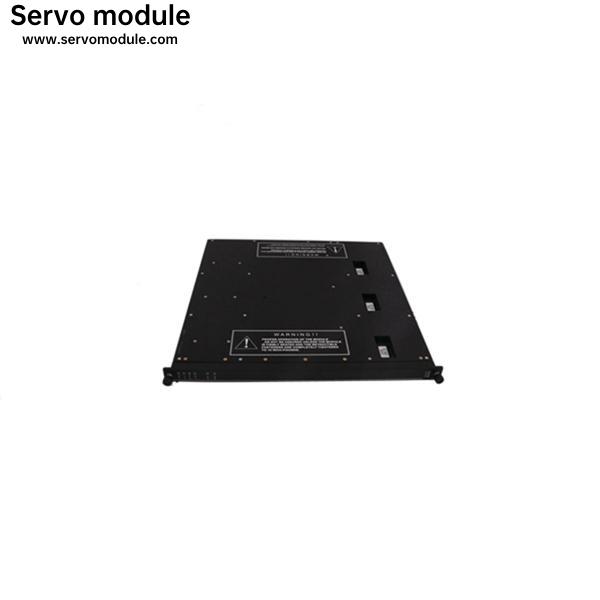

Tricon Communication ModuleTCM4351A

Triconex 4351A

On TCM Models 4351A, 4351B, 4352A, and 4352B, NET 1 and NET 2 support the TCP/IP, Modbus TCP/IP Slave/Master, TSAA, TriStation, SNTP, and Jet Direct (for network printing) protocols. NET 1 also supports the Peer-to-Peer (UDP/IP) and Peer-to-Peer Time Synchronization protocols.

TCM4351ASpecifications

Serial ports: 4, RS-232/RS-485 ports, DB-9 connectors

Network ports: 2, 10/100BaseT Ethernet ports, RJ-45 connectors (Models 4351A, 4351B, 4353)

Port isolation: 500 VDC

Protocols: TriStation, Modbus, TCP/IP, ICMP, SNTP, TSAA (with support for IP Multicast), Trimble GPS, Embedded OPC Server (Models 4353 and 4354), Peer-to-Peer (UDP/IP), Peer-to-Peer Time Synchronization, Jet Direct (network printing)

Communication Hardware and Software

Tricon Communication Module (TCM), Ethernet (802.3) and serial (RS-232/RS-485) ports 4351A, 4352A, 4351B, 4352B 4353, 4354

Enhanced Intelligent Communication Module (EICM), serial (RS-232/RS-422/RS-485) ports 4119, 4119A

Safety Manager Module (SMM), Honeywell UCN Interface 4409

Network Communication Module (NCM), Ethernet (802.3) ports 4329, 4329G

Advanced Communication Module (ACM), Foxboro I/A Series Nodebus Interface 4609

Hiway Interface Module (HIM), Honeywell Data Hiway Interface 4509

Triconex DDE Server Software 7523-2

Network Accessory Kit (Ethernet thin cable, connectors and terminators) 7600-3
