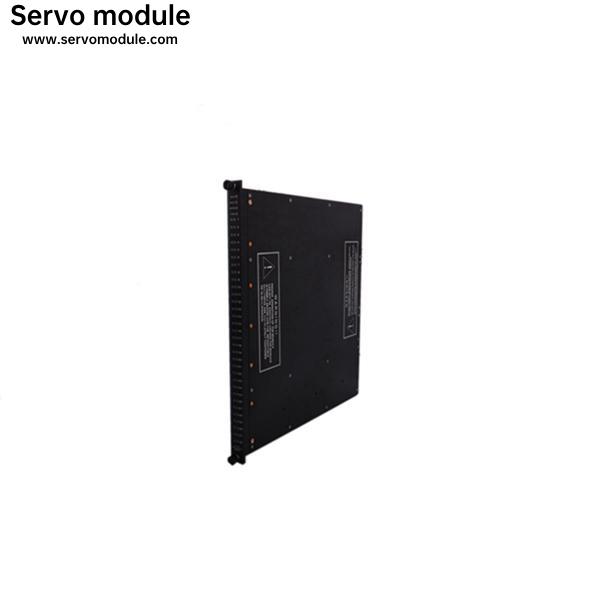

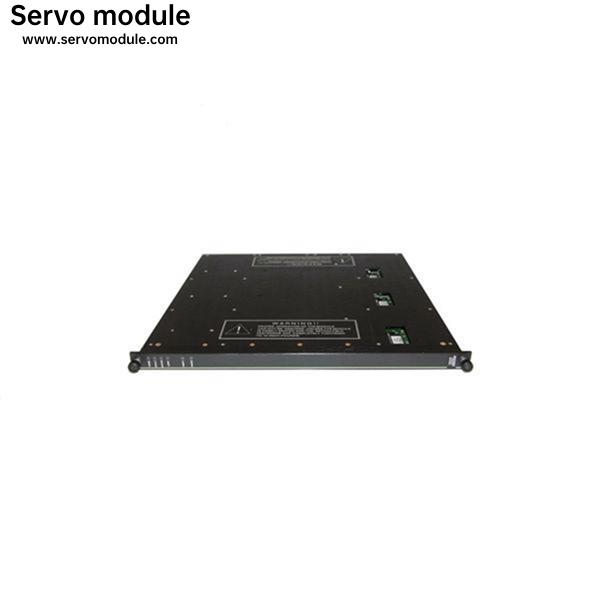

Triconex 7400097-110 Analog Output 3805E Enhanced AO
3805EAnalog Output Module
The Model 3805H module has been modified to support increased inductiveloads. It is fully compatible for use in all applications of the 3805E module. The Model 3806E and Model 3807 modules are optimized for turbomachinery control.
Triconex3805E Speicification
| Brand/Manufacturer | Invensys |
| Part Number | 3805E |
| Description | OUPUT MODULE ANALOG 8PT TMR 4-20MA DC CPLED |
| Dimensions | 49x45.3x6.8cm |
| Weight | 2.75 kg |
Analog Modules
Analog Input Modules
0-5 VDC Differential, DC Coupled TMR 3700A
0-10 VDC Differential, DC Coupled TMR 3701
0-10 VDC Differential, Isolated TMR 3703E
0-10 VDC High-Density, Differential, DC Coupled TMR 3704E
Thermocouple Differential, DC Coupled TMR 3706A
Thermocouple Differential, Isolated TMR 3708E
0–5 VDC Single-Ended TMR 3720
0 to 5 or –5 to +5 VDC Differential, DC Coupled TMR 3721
Analog Output Modules
4-20 mA Current Loop, DC Coupled TMR 3805E/3805H
4-20 mA and 20-320 mA Current Loop, DC Coupled TMR 3806E
–60 to 60 mA BiPolar, Commoned Return, DC Coupled TMR 3807
