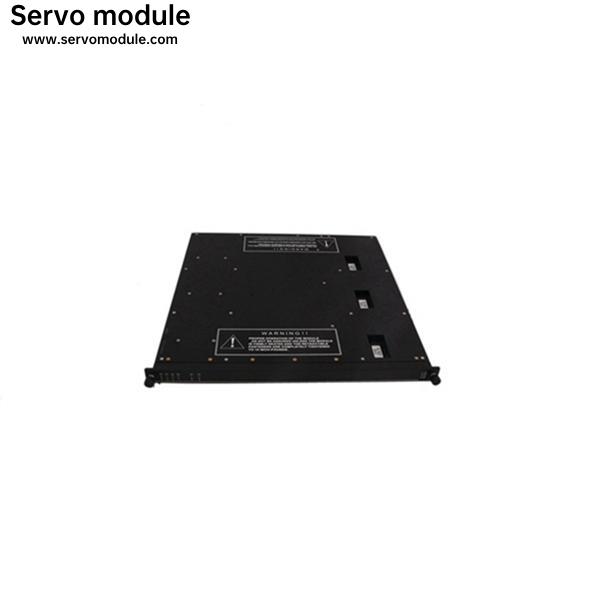

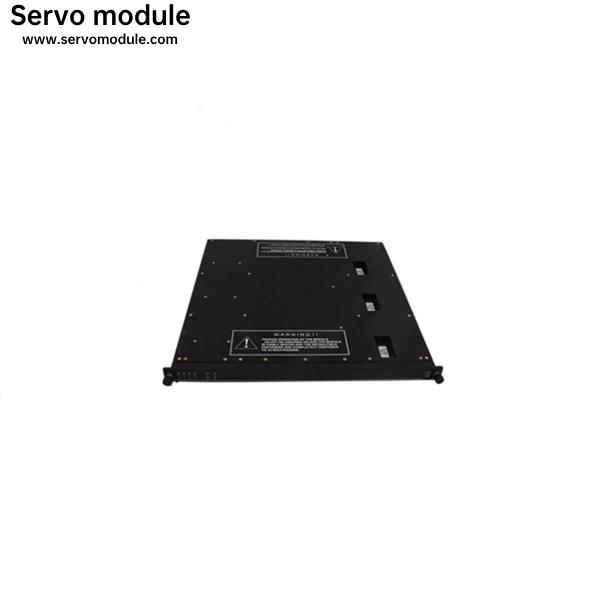

Triconex DI3301 Digital Input PLC System Module

Digital Input Modules

Every digital input module houses the circuitry for three identical channels (A, B and C). Although the channels reside on the same module, they are completely isolated from each other and operate independently. A fault on one channel cannot pass to another. In addition, each channel contains an 8-bit microprocessor called the I/O communication processor, which handles communication with its corresponding main processor.

Triconex DI3301 Ovrview
Manufacturer: Triconex
Product No.: DI3301
Product Type: DI Input Module
Weight: 1.42 Kg

Digital Input Modules Information
115 VAC/VDC Opto-Isolated, Non-Commoned TMR 3501E/3501T
48 VAC/VDC Commoned in Groups of 8, Self-Test TMR 3502E
24 VAC/VDC Commoned in Groups of 8, Self-Test TMR 3503E
24/48 VDC High Density, DC Coupled TMR 3504E
24 VDC Low Threshold with Self-test, Commoned TMR 3505E
24 VDC Single, Opto-Isolated, Commoned Single 3564
Pulse Input Differential, AC Coupled TMR 3511
Pulse Totalizer Opto-isolated, Non-commoned TMR 3515
