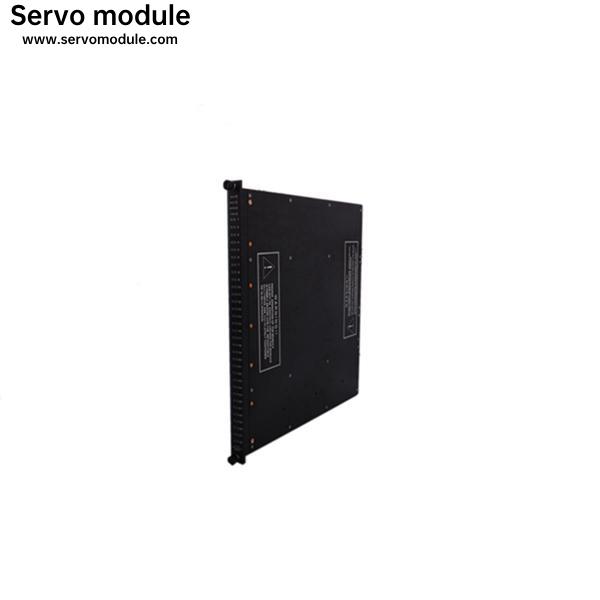

Triconex MP3101 Trident Redundant Processor Module

Main Processor ModuleMP3101

A Tricon system contains three main processor (MP) modules to control three separate channels of the system. Each main processor operates in parallel with the other two main processors, as a member of a triad.A dedicated I/O and COMM processor on each main processor manages the data exchanged between the main processors and the I/O modules. A triplicated I/O bus is located on the chassis backplane and is extended from chassis to chassis by means of I/O bus cables.

TriconexMP3101 Quick Detail

Manufacturer: Triconex

Product Type: Trident Redundant Processor Module

Main Processor & Communication Modules Introduction
3008 Main Processor, 16 megabytes DRAM 3008
Tricon Communication Module (TCM), Ethernet (802.3) and serial (RS-232/RS-485) ports 4351A, 4352A, 4353, 4354
Enhanced Intelligent Communication Module (EICM), serial (RS-232/RS-422/RS-485) ports 4119, 4119A
Safety Manager Module (SMM), Honeywell UCN Interface 4409
Network Communication Module (NCM), Ethernet (802.3) ports 4329, 4329G
Advanced Communication Module (ACM), Foxboro I/A Series Nodebus Interface 4609
Hiway Interface Module (HIM), Honeywell Data Hiway Interface 4509
Triconex DDE Server Software 7523-1
Network Accessory Kit (Ethernet thin cable, connectors and terminators) 7600-3
