Details

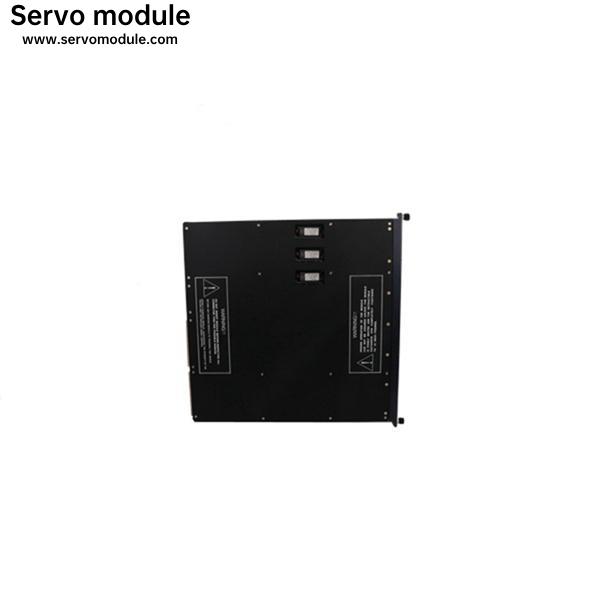

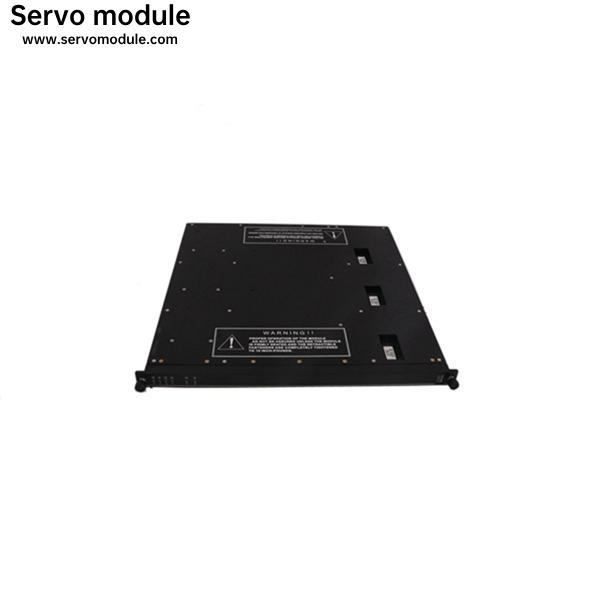

Triconex Baseplate 7400209B-030 New In Stock
Communication Bus
Power for the chassis is distributed across two independent power rails down the center of the backplane. Every module in the chassis draws power from both power rails through dual power regulators. There are four sets of power regulators on each input and output module: one set for each of the channels A, B and C and one set for the status-indicating LED indicators.
Tricon I/O Modules
115 VAC/VDC Opto-Isolated, Non-Commoned TMR 3501E/3501T48 VAC/VDC Commoned in Groups of 8, Self-Test TMR 3502E
24 VAC/VDC Commoned in Groups of 8, Self-Test TMR 3503E
24/48 VDC High Density, DC Coupled TMR 3504E
115 VAC Opto-Isolated, Non-commoned TMR 3601E/3601T
120 VDC Opto-Isolated, Non-commoned Opto-Isolated, Commoned TMR 3603B, 3603E/3603T
24 VDC Opto-Isolated, Non-commoned TMR 3604E
48 VDC Opto-Isolated, Non-commoned TMR 3607E
115 VAC Galvanically Isolated, Commoned., Supv. TMR 3611E
48 VDC Galvanically Isolated, Commoned, Supv. TMR 3617E
120 VDC Opto-Isolated, Commoned, Supervised 3623/3623T
0-5 VDC Differential, DC Coupled TMR 3700A
0-10 VDC Differential, DC Coupled TMR 3701
0-5, 0-10 VDC Differential, Isolated TMR 3703E
0-5, 0-10 VDC High-Density, Differential, DC Coupled TMR 3704E
Thermocouple Differential, DC Coupled TMR 3706A
4-20 mA Current Loop, DC Coupled TMR 3805E
4-20 mA and 20-320 mA Current Loop, DC Coupled TMR 3806E
