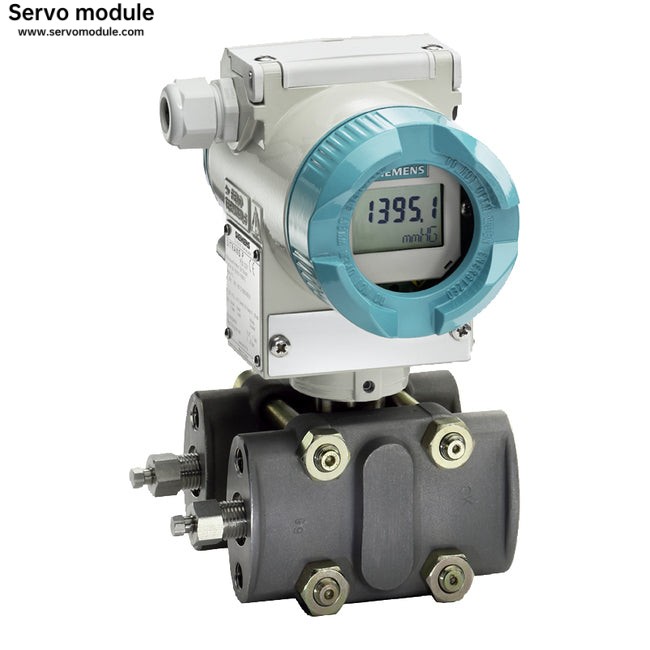

7MF4433-1DA22-1BB7-Z Siemens

Description:SITRANS P DS III / P410, HART, 4-20 mA transmitter for differential pressure and flow PN 32/160 gas 1/liquids 1 art. 3.3 sep Measuring cell filling silicone normal cleaning Span: PN 160 (MWP 2320 psi): 2,5 to 250 mbar (1.004 to 100.4 inH2O), max. static pressure 160 bar Diaphragm stainless steel parts of measuring cell stainless steel Process connection: 1/4-18 npt mounting thread: 7/16-20 unf Die-cast aluminium housing, process flange bolts stainless steel Standard design . Explosion protection EEx ia Electric connection and cable inlet: cable gland M20 x1.5 Housing cover with window customized adjustment supplement Y21 required With stainless steel mounting bracket Quality inspection certificate (Factory calibration) to IEC 60770-2 Factory certificate to DIN 50 049-2.2 / EN 10 204-2.2 Adjustment digital indicator specify in plain text Y21: mBar, bar, kpa, mpa

Weight:4.5kg

SKU:7MF44331DA221BB7Z

Delivery:We ship via global express services, such as DHL, Fedex, Swiss Post.

Warranty:3 Years AW warranty, for peace of mind.
