7ML5431-1BC00-1DA1 Siemens

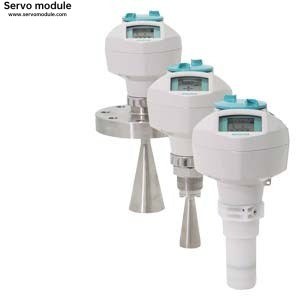

Description:SITRANS LR250 Radar level transmitter: continuous, non-contact, 20 m (66 ft) range, for liquids and slurries. Process Connection and Antenna Material: 316L (1.4435 or 1.4404) stainless steel, PTFE emitter, FFKM seal Process connection type: Flanged connection made of stainless steel mat. no. 1.4404/316L: 4" Class 150 ASME, ASME B16.5 flat flange Communication: 4 to 20 mA, HART start-up at >3.6mA (option on HOLD being replaced with Option 2) . Enclosure/Cable inlet: Aluminum, 2 x M20 x 1.5 Antenna Version, Size/Extension: Antenna /Extension 316L: 4 inch Horn (fits 4 inch ASME or DN 100 nozzles) Approvals: Ordinary Locations/General Purpose (Non-Ex), CE, UKCA, CSA, FM, FCC, RED, RCM Pressure Rating: 0.5 bar (7.5 psi g) max

Weight:10kg

SKU:7ML54311BC001DA1

Delivery:We ship via global express services, such as DHL, Fedex, Swiss Post.

Warranty:3 Years AW warranty, for peace of mind.
