FDU:70000004206908 Siemens

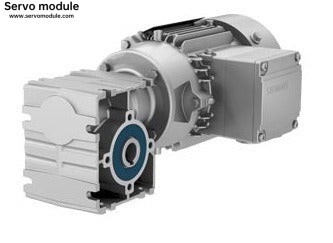

Description:customer ID number 6.613-443.0 type designation MOTOX worm geared motor type SCAQ26-T71M4U material number 000000999999999999 oil quantity 1 0.18 l performance data output torque 43 Nm service factor 2.7 gear ratio 13.000 output speed 129 rpm power (kW) 0.66 kW operating mode S3-60 % voltage 220/380 V frequency 6 0 Hz speed 1680 rpm current 3.36/1.94 A cos phi 0.74 dimension drawing SCAQ26/600449 dimension drawing index 60 0449 gearbox options design B 5-01-A flange diameter 128 mm output shaft V40x50 shaft material X8CRNI S18-9 bearing assigned bearing oil type 1 CLP PG VG()

Weight:22kg

SKU:FDU70000004206908

Delivery:We ship via global express services, such as DHL, Fedex, Swiss Post.

Warranty:3 Years AW warranty, for peace of mind.
