1LE5603-3BB43-3GQ3-Z B02+F40+H70+L51+Q02+R62+S03+Y82 Siemens

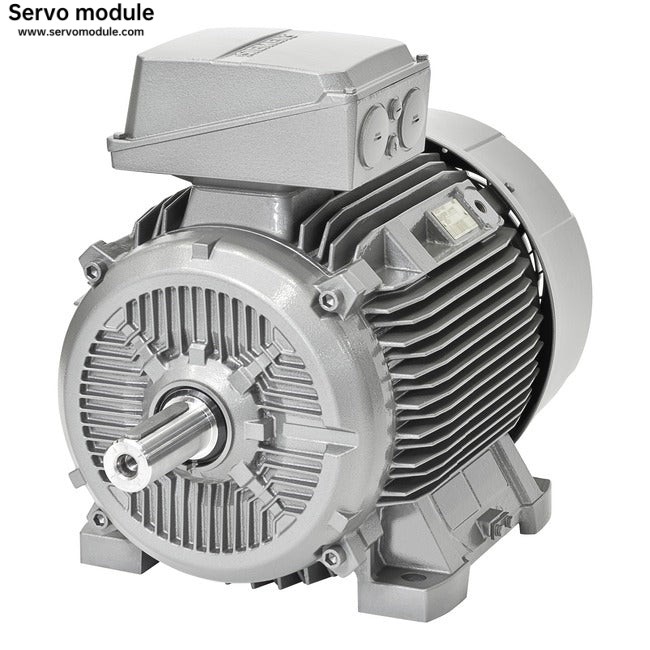

Description:SIMOTICS SD motor type: 1CV3353B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Performance Line Premium Efficiency IE3, 4-pole * frame size 355L* 355 kW (50 Hz) standard color RAL 7030, if no order code is specified for selecting another color. 3 AC 50HZ 400VD/690VY * 3 AC 60HZ 460VD IM B 3, 3 PTC thermistors for disconnection (2 terminals) Terminal box base right with inclined terminal box 45° B02=Acceptance test certificate 3.1 according to EN 10204 L51=Bearing insulation NDE (non drive end) N06=Temperature class 155 (F), utilized according to 130(B), coolant temperature 50°, derating approx. 8% N30=Increased humidity/temp. with 30 to 60 g water Q02=Anti-condensation heating for 230 V (2 terminals) R16=EMC cable gland, max. components R62=Auxiliary terminal box cast iron (small) S03=Special paint finish, sea air resistant Y80=Additional rating plate with deviating rating plate data Y82=Extra rating plate with customer data (no modified motor operating data permissible)

Weight:1000kg

SKU:1LE56033BB433GQ3ZB02F40H70L51Q02R62S03Y82

Delivery:We ship via global express services, such as DHL, Fedex, Swiss Post.

Warranty:3 Years AW warranty, for peace of mind.
