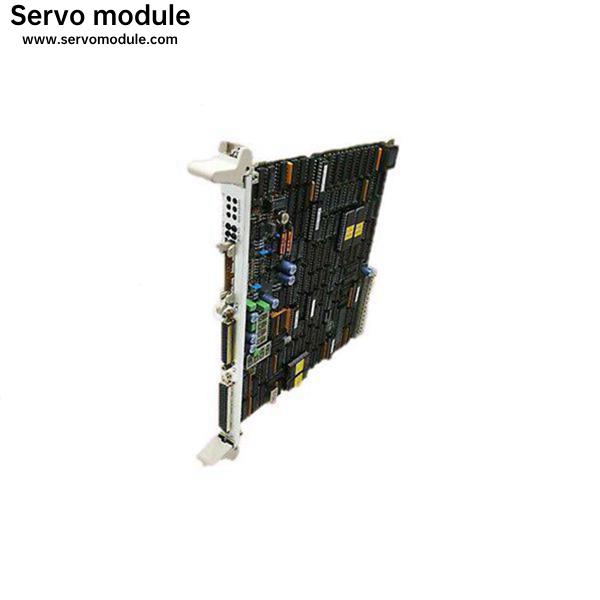

Siemens 6DD1681-0AG1 Binary Output Interface Module Brand New

Description

Since replacing the PLC CPU also requires changing the PLC entire back plane, any modules that were previously used in the S5 rack must also be replaced. This includes all I/O modules, function modules, and communication modules. c. Interface Modules in Local Expansion Racks In legacy S5 applications, there may have been more than one tier of modules (local expansion racks) connected to the main rack. In these cases, all the modules will have to be replaced with S7 modules. If using the S7-300 family, a similar architecture can be achieved using the IM360, IM361, and IM365 modules to expand the main rack. If using the S7-400 family, the IM460 and IM461 are used. Another possible thing to consider is to move the modules to a remote rack and use the IM463 interface as shown below. This might be cost effective since you could reuse the S5 I/O modules. The following sketch shows remote racks of S5 type connected to a S7 main rack through the IM463. Note this could be a possible setup for both intermediate performance and high performance systems. The IM463 interface is very easy to program. Very similar to a DP coupler in that it has S5 addresses assigned on one side and S7 addresses assigned on the other side. Experience has proven that the correct length of the 721 cable is important. There is a switch on the front of the IM463 module which must be set to the length of the 721 cable. There are 4 choices for length. Again, the other way to migrate the system would be to convert the remote racks and all of the modules to ET200M. It may be wise to make several estimates of hardware conversions, and choose the most cost effective approach.

Advantage Products

①Allen-Bradley(USA AB)Series

②Schneider(Schneider Electric)Series

③General electric(General Electric)Series

④Westinghouse Series

⑤SIEMENS Series

⑥ABB Robots. FANUC Robots、YASKAWA Robots、KUKA Robots、Mitsubishi Robots、OTC Robots、Panasonic Robots、MOTOMAN Robots.

⑦Westinghouse: OVATION System、WDPF System、MAX1000 system spare parts.

Conversion、I/O Signal processing、Data communication systems?Digital-to-Analogue

⑧Invensys Foxboro I/A Series system，FBM（I/O）SCS、Trapezoidal logic control、Accident recalling、DAC

Invensys Triconex: Redundant fault-tolerant control system、Most modern fault-tolerant controller based on Triple Modular Redundancy (TMR) architecture.

⑨Siemens：Siemens MOORE，?Siemens Simatic C1，Siemens CNC system.

FAQ:

1.Is the part new?
Yes, 100% Original brand new

2.How is the package?
Original factory seal packed

3.What is the lead time?
In stock: 1-3 working days

4.What is the MOQ:
1pcs

5.What is the payment term:
TT and Western Union, other negotiable

6.Where the item ship from?
Xiamen

7.What is the warranty time?
One year

8. How to delivery the PLC Parts?
Kindly tell us your address,we check best cost for you
Or you can use your own courier account or agent, DHL, FEDEX, UPS etc are available.
