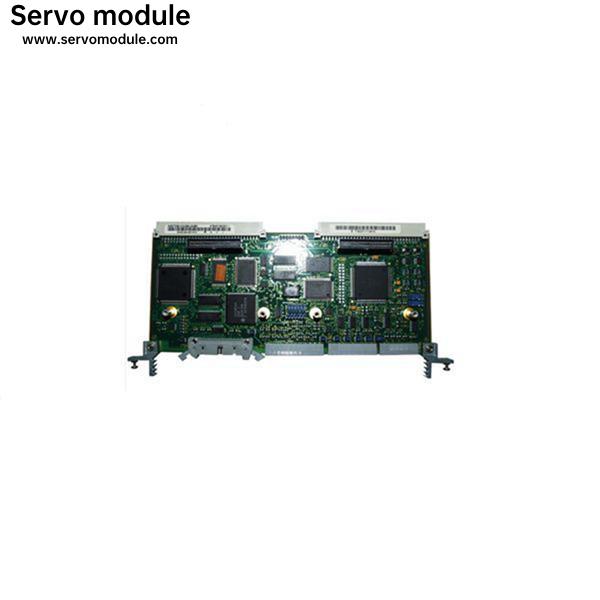

Siemens 6ES7414-1XG02-0AB0 Processor Module Original New

Introduction

To install modules in a rack:

1. Remove the dummy plates from the slots at which you intend to insert modules. Grasp the dummy plate at the points marked and pull it forward and off. With double and triple-width modules, you must remove the dummy plates from all the slots to be covered by the relevant module.

2. Remove the cover, if applicable, from the module (see Figure 2-3).

3. Disconnect the power supply connector at the power supply module.

4. Attach the first module and swing it downwards (see Figure 2-4). If you feel a resistance when swinging the module down, raise it slightly and then continue.

5. Tighten the module screws top and bottom with a torque of 0.8 to 1.1 N/m (see Figure 2-5). Triple-width modules are secured with two screws at the top and at the bottom.

6. Refit the module cover, if applicable.

7. Fit the remaining modules in the same way. The individual steps for installation are explained below. The method of removing modules is described in Chapter

FAQ:

1.What about the warranty?
All products have a 1 year warranty.

2.What is the delivery time?
Usually 1-3 Working Days

3.Other suppliers have better prices than you?
"It is our belief to create the greatest benefit for our customers.If you have a better price, please let us know.We will do our best to meet your price and support you.

4.How about the shipment?
We can arrange shipments at competitive prices such as DHL, FedEx, UPS, TNT, etc.

5.What are the payment terms?
Generally, T/T, Credit Card and Western Union are also accepted.

Advantage Products

①Allen-Bradley(USA AB)Series

②Schneider(Schneider Electric)Series

③General electric(General Electric)Series

④Westinghouse Series

⑤SIEMENS Series

⑥ABB Robots. FANUC Robots、YASKAWA Robots、KUKA Robots、Mitsubishi Robots、OTC Robots、Panasonic Robots、MOTOMAN Robots.

⑦Westinghouse: OVATION System、WDPF System、MAX1000 system spare parts.

Conversion、I/O Signal processing、Data communication systems?Digital-to-Analogue

⑧Invensys Foxboro I/A Series system，FBM（I/O）SCS、Trapezoidal logic control、Accident recalling、DAC

Invensys Triconex: Redundant fault-tolerant control system、Most modern fault-tolerant controller based on Triple Modular Redundancy (TMR) architecture.

⑨Siemens：Siemens MOORE，?Siemens Simatic C1，Siemens CNC system.
