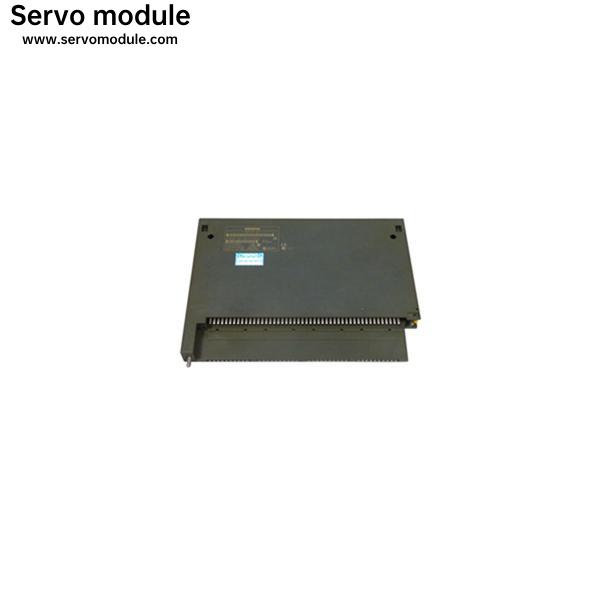

100% New Siemens Simatic 6ES7414-3EM05-0AB0 Module

Description

A channel on a digital module is addressed bit-wise. For a digital input module with 32 inputs, four bytes (starting with the default address of the module) are used to address the inputs, and for a digital input module with 16 inputs, two bytes are used. Bits 0 to 7 in these bytes are then reserved by the individual inputs (from top to bottom). This is clarified by the following figure with the example of a digital input module with 32 channels at slot 12 (default address 44). With a digital output module, the first character is a Q instead of an I.Channels on analog modules are addressed word-wise. Starting with the default address of the module, which also represents the address of the uppermost channel of the module, the addresses of the individual channels (from top to bottom) increase by two bytes (= one word). This is clarified by the following figure with the example of a digital input module with 8 channels at slot 6 (default address 832). With an analog input module, the first characters are IW instead of QW.The modules of the S7-400 system are supplied with all the required operating voltages by a power supply module, via the backplane bus of the rack. Which power supply module you use in a rack depends on your system requirements (line voltage, current consumption of the modules used). You must provide load voltages and currents via external load current power supplies. The following figure shows how the individual modules of the S7-400 are supplied with current and voltage.

Our Advantage

ICS Triplex T8461,ICS Triplex T8311,ICS Triplex T8431,ICS Trusted Triplex T8310
All Yokogawa CP401-10,SCP461-51,Yokogawa CP451-10,ALR121-S50 Are Availabe
We Also Sell Emerson DeltaV EPRO Yokogawa Products,Call US Now.

Packaging & Shipping
1) For the in-stock items, we will send the order out within 3 days after receiving the payment.
2) We can ship all over the world via DHL, UPS, FedEx, and EMS. The packaging is very strong. If you have any special needs, please notify me.
3) You are expected to receive the item about 7 days after we send it out.
