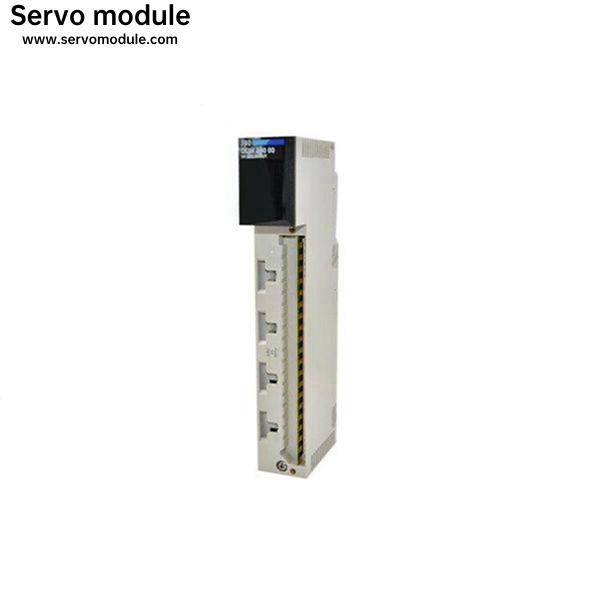

TSXP4720 Schneider New ModuleModicon Quantum

Introduction

Quantum DIO can be set up in standard single or dual cable configurations (refer to the following two figures). The Quantum DIO architecture is based on Modicon’s Modbus Plus technology. When DIO is utilized, the Quantum system may support up to three distributed networks of up to 64 drops (using a repeater) each. Communication between the various nodes and the Modbus Plus head, in both single and dual cable DIO configurations, is done by twisted pair cabling from the head to the DIO adapters at the drops.

MODBUS Plus taps that can be used for single and dual cable DIO configurations include:

1.Part Number 990NAD23000, plastic; and

2.Part Number 990NAD23010, ruggedized

The following MODBUS Plus trunk cables can be used with these DIO configurations:

1.Part Number 490NAA27101 (100 ft/30 m)

2..Part Number 490NAA27102 (500 ft/152 m)

3.Part Number 490NAA27103 (1000 ft/304 m)

4.Part Number 490NAA27104 (1500 ft/456 m)

5.Part Number 490NAA27105 (5000 ft/1520m)
