Hot Sale Large Stock New And Original PLC Module 140DDO35300
Description

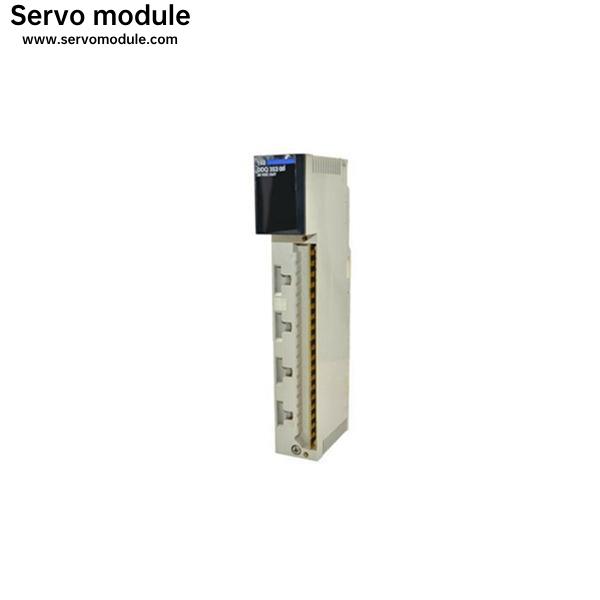

Schneider Electric 140 DDO 35300 Overview
The Modicon Quantum 140 DDO 35300 source OUT module is manufactured by Schneider Electric for use on the Quantum EcoStruxure Control Expert platform. The 140 DDO 35300 is a DC output of 24 Vdc and is capable of 8 groups of 4 points of output.
Features
The Schneider Electric 140 DDO 35300 is used for switching 24 VDC power loads. What is the 140 DDO 35300 DC output 24 VDC 4 x 8 source module used with? It is for use with shared output common wired to 0 V. This modular unit has 32 OUT, that is eight (8) groups of four (4) points of output. With a logic level of True High, this module has an external power range of 19.2 ... 30 VDC. The power dispensation for the 140 DDO 35300 is 1.75 W + 0.4 V x Total module load Current. The Bus current that is required for the Modicon 140 DDO 35300 is 330 mA. It employs an Output blown fuse fault detection and a loss of field power.
The maximum operating voltage for the Schneider Electric 140 DDO 35300 is 19.2 ... 30 VDC while the maximum absolute voltage is 56 VDC for 1 ms decaying pulse. The On State voltage drop is 0.4 VDC @ 0.5 A.
The max load current for each of the 4 points of the Modicon 140 DDO 35300 is 0.5 A and the max load current for each of the 8 groups is 4 A. The max load current for the module is 16 A. The maximum surge current for each point of the 140 DDO 35300 output module is 5 mA @ 500 ms duration (no more than 6 per minute). It has an OFF State leakage point of 0.4 mA @ 30 VDC.
