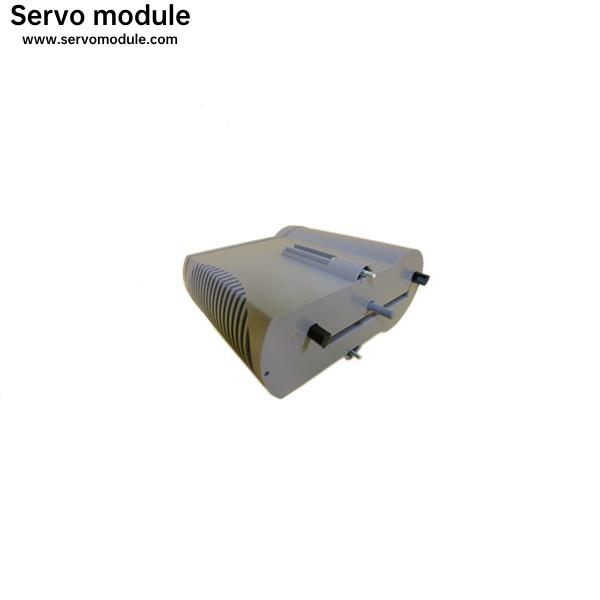

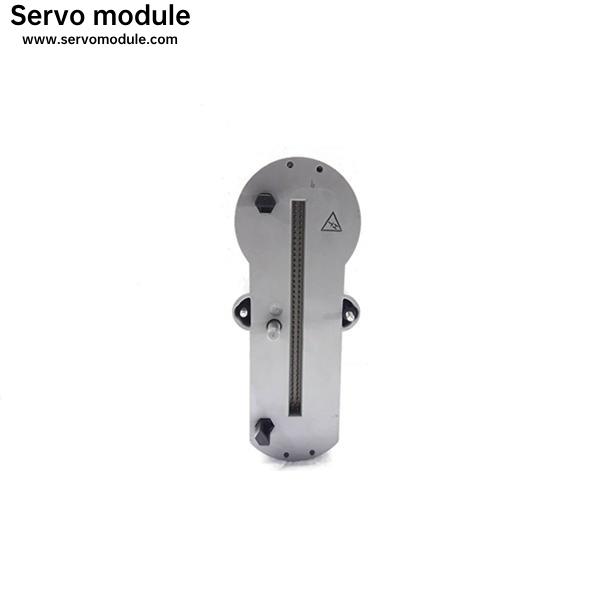

HONEYWELL 8C-PDIPA1 51454471-375 MODULE NEW
Description
Manufacturer : Honeywell
Product No. :8C-PDIPA1 51454471-375
Product type :Digital Input Pulse Accumulation Module
Introduction
Adequate grounding is important for safety considerations and for reducing electromagnetic noise interference. All earth-ground connections must be permanent and provide a continuous low impedance path to earth ground for induced noise currents and fault currents. Refer to the following guidelines when considering the grounding requirements of your system:
For safe operations of your equipment, a high-integrity grounding system must be installed as part of the building's wiring system.
-An equipment ground wire must be enclosed with the circuit conductors (phase and neutral wires).
-The size of the ground conductor must be the same as, or larger, than the circuit conductors supplying the equipment.
-The ground conductor must be securely bonded to the building-ground electrode.
-Grounding provisions must be in accordance with the NEC, CEC, and any other local codes.
-Ensure that the cabinet enclosure is connected to a protective earth ground using at least a #8 AWG solid copper wire. There should be metal to metal contact between the grounding bus bar and the enclosure as well as the channel. See the illustration below for more
