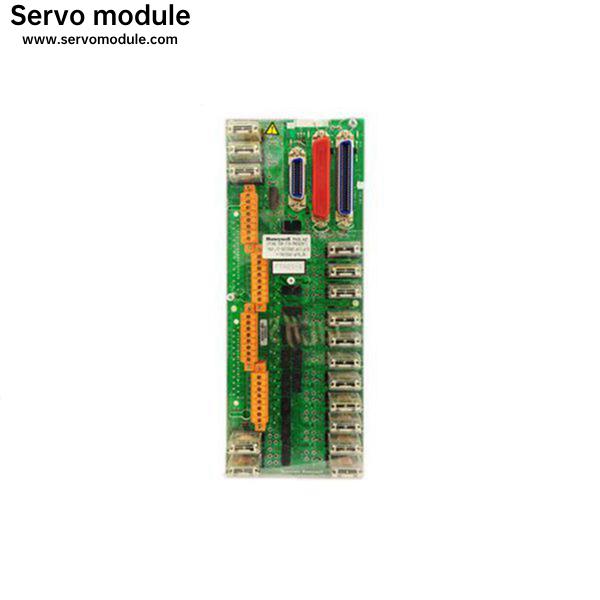

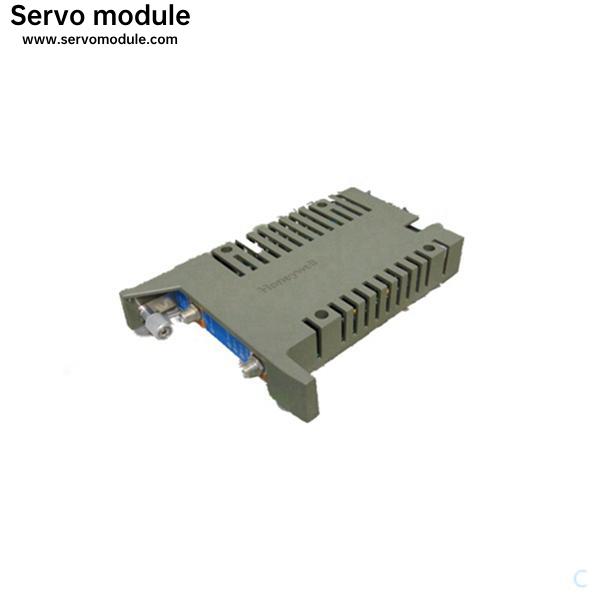

Honeywell TDC3000 Analog Input High Level Module MC-TAIH03 Part

Description

The XYR5000 Serial Interface FTA (SI-FTA) is designed to gather data from Honeywell’s Wireless Base Radio XYR5000 and present it in a reasonable format in APM or HPM arrays. While the XYR5000 is able to communicate as a Modbus Slave with the standard Modbus Master SI-FTA, the data is provided in 5 floating point numbers. Using this format, there is a maximum of 48 transmitters per SI-FTA and obtaining the status flags from the floating point number representing the transmitter statuses requires intensive CL work. The XYR5000 Serial Interface FTA takes into account the specified Modbus locations of the value data for all 50 possible transmitters associated with the base radio and manipulates that data into a more reasonable format. The values for PV1 are all stored together. The same is true for all of the PV2 and all of the PV3 values. As well, the status data is extracted from the floating point values and stored into individual flags for each transmitter. As an added bonus, the capability to convert the individual PV1, PV2, and PV3 value data from DegC to DegF is provided. To ease the burden of getting the raw PV values and flags from the Array points into scaleable and alarmable points, the XYR 5000 SI-FTA package provides a database configurator that will create the necessary files to build the necessary database and xPM Control Language (CL) based upon the customer’s input. This document only addresses communication through the Honeywell XYR 5000 from the TPS xPM (APM or HPM). There are no writes effected to the XYR 5000 from this SI-FTA. The number of reads and the locations read are fixed based on the version of the radio and the number of transmitters implemented. The XYR SI-FTA acts as a Modbus master device and requests data from the base radio, distributing the returned data in the arrays as described herein.

FAQ

Q) What is your advantage
A)Competitive Price Fast Delivery Thoughful service

Q) What about payment
A)T/T, Western Union, Credit Card

Q) What is the warranty?
A)The Process Automation warranty is 12 months from date of shipment.

Q) What is the price?
A) The target pricing is to be competitive with the 3 rd party surplus market.The pricing is subject to change, and the percentage as compared to new varies by product.

Packaging & Shipping

1.All the goods will be tested before shipment.
2.Packing in professional anti-static bag.
3.We can ship to you by DHL/TNT/UPS/EMS/Fedex...Pls contact us directly and we will
