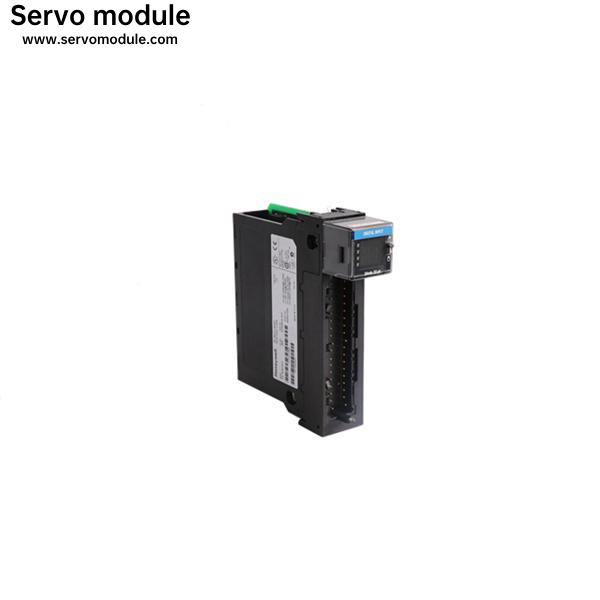

Honeywell 8C-PAINA1 Module C300 System
Overview
Series 8 control hardware consists of the following system components:
1.C300 Controller is a distributed process controller and I/O gateway for the Experion LX system. The C300 Controller supports configuration, load and execution of the standard function blocks.
2.Series 8 Input/Output Modules that feature AI-HL - High Level Input, AO - Analog Output, HART-capable AI and AO modules, and TC/RTD module. Digital input modules that support 24V DC inputs, a Digital Output module that provides 24 VDC, and DI-SOE that supports sequence of events.
All Series 8 control hardware is constructed using the same form factor; that is, the C300 Controller modules, and Series 8 I/O modules, and Series 8 FIMs all mount on their associated Input Output Termination Assemblies (IOTAs), which are installed on channel hardware specifically designed to support Series 8 hardware installation. The module's circuit board assemblies are housed in a plastic case with a round faceplate that identifies the module type and model number along with status LEDs and a fourcharacter alphanumeric display. The IOTA contains connectors that accept the associated control module and the various I/O connectors for cables that connect to other Series 8 control hardware. Figure 1 shows an example of the design.
The C300 Controller is constructed using the Series C form factor that employs an Input Output Termination Assembly (IOTA) and an electronics module which mounts and connects to the IOTA. The C300 Controller supports configuration, load and execution of the standard function blocks. Note that there are a few exceptions defined below.
