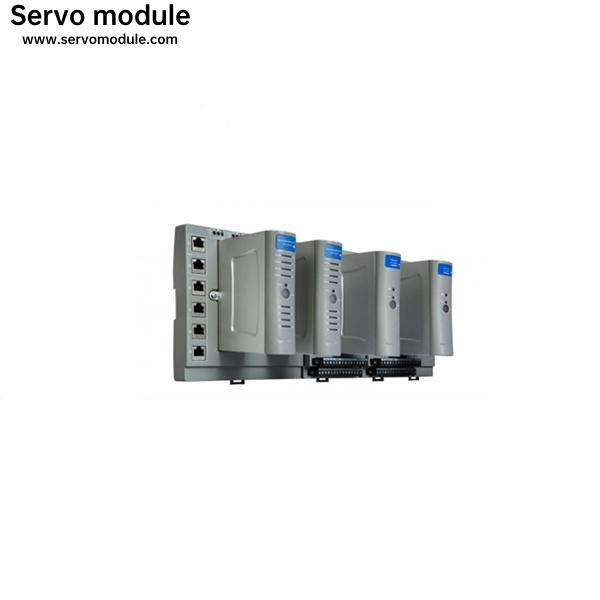

Quality New Honeywell TK-FTEB01 51309512-175/51403483-100Module
Introduction
Redundant IO configurations Redundant IO configurations can be used in Safety Manager with a redundant Controller. In this fully redundant configuration, each Control Processor has its own IO system to which it has exclusive access. Each Control Processor reads its own input interfaces once every program cycle. After input matching, both Control Processors execute the user-defined control program and update their output interfaces according to the results. Before setting, the Control Processors compare the calculated output results to ensure identical operation. Redundant IO configurations are typically used for safety functions that require optimal availability. With Safety Manager R120, also Analog Outputs can be used in a redundant topology.
HoneywellField Termination Assemblies FTA Models
|
Uncoated Model Number |
Coated Model Number |
Description |
|
MU-TAIH22 |
MC-TAIH22 |
Enhanced Power High Level /STI Analog Input FTA (16 Inputs) ** |
|
MU-TAIH02 |
MC-TAIH02 |
High Level Analog Input/STI FTA (16 Inputs) |
|
MU-TAIH12 |
MC-TAIH12 |
High Level Analog Input/STI FTA for Redundancy (16 Inputs) ** |
|
MU-TAIH03 |
MC-TAIH03 |
High Level Analog Input FTA (16 Inputs) (CE Mark) |
|
MU-TAIH13 |
MC-TAIH13 |
High Level Analog Input FTA for Redundancy (16 Inputs) (CE Mark) ** |
|
MU-TSTX03 |
MC-TSTX03 |
Smart Transmitter Interface FTA (16 Inputs) (CE Mark) |
|
MU-TSTX13 |
MC-TSTX13 |
Smart Transmitter Interface FTA for Redundancy (16 Inputs) (CE Mark) ** |
|
MU-TAIH23 |
MC-TAIH23 |
Enhanced Power High Level Analog Input FTA (16 Inputs) (CE Mark)** |
Original And New
| 1775-S5 | AV31 | CC-PAIH02 |
| 1775-S4B | AV43 AV 43 | CC-PAIH01 |
| 1775-S4A | AX460/50001 | CC-MCAR01 |
| 1775-MED | AX521 B4 | CC-KREBR5 |
| 1775-MEA | AX645 3BHB001914R1 | CC-KFSGR5 |
| 1775-LX | BRC-100 P-HC-BRC-10000000 | CC-IP0101 |
| 1775-L4 | BRC300 | 97062774 A01 |
| 1775-KA | BRC300 PHCBRC30000000 | 9395-00381-013 |
| 1775-GA | BRC400 P-HC-BRC-40000000 | 900TBR-0001 |
| 1772-LX | BRC410 SPBRC410 | 900S50-0360-00 |
| 1772-LW | BSM80C-275AFX | 900RTS-0001 |
| 1772-LS | BSTC176 SE98424140 | 900RTR-H001 |
