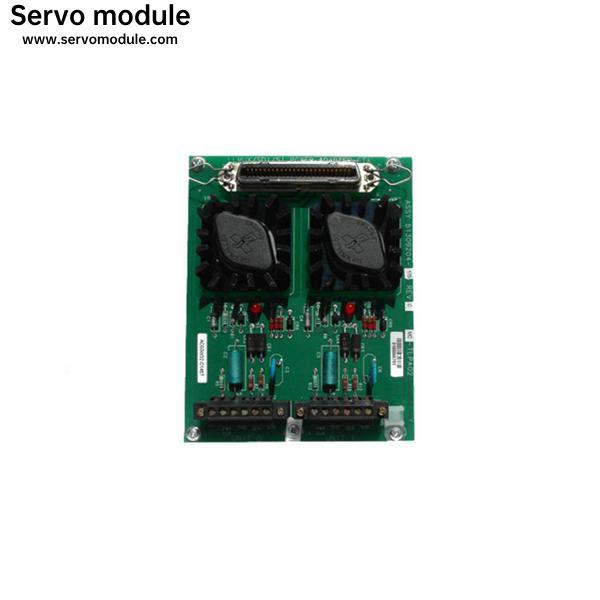

51196653-100 Honeywell TDC 3000 DCS Center

Introduction

Safety Manager™ supports the integration of Safety Manager into Experion™ PKS which unifies Honeywell’s safety controller with its equally reliable Experion platform. The integration is realized through the Safety Manager Universal Safety Interface (USI) via High Speed Ethernet (HSE) on the Fault Tolerant Ethernet (FTE) layer, which is placed in the control processor of the Safety Manager Controller. This USI module makes Safety Manager an integrated part of the Experion architecture, which means that Safety Manager related information can easily be exchanged between Safety Manager and Experion. This allows information to be shared and made available on the Experion Server displays.

Safety Manager integrates the sequence-of-event (SOE) features as supported by Safety Manager into the Experion server. Safety Manager supports SOE for digital inputs and outputs, analog inputs and outputs, and marker points. Each tag name that has been “SOE-enabled” is time-stamped by the Safety Manager controller and reported to the Experion Server, where it is incorporated into the standard Experion Server SOE list which allows for improved search, filter and automated archive functionality. Standard SOE displays are available to view the events as they are reported.

Related Honeywell PLC modules

Honeywell RHMUX Remote FTA MC-GRMT01
Honeywell Digital Output 120/240 Vac Solid-State FTA MU-TDOA13 MC-TDOA13
Honeywell Digital Output 3-30 Vdc Solid-State FTA MU-TDOD13 MC-TDOD13
Honeywell Digital Output 3-30 Vdc Solid-State FTA MU-TDOD14 MC-TDOD14
Honeywell Digital Output 31-200 Vdc Solid-State MU-TDOD23 MC-TDOD23
Honeywell Digital Output 24 Vdc, 100 ma Nonisolated FTA MU-TDON12 MC-TDON12
Honeywell Digital Output 120 Vac/125 Vdc Relay FTA MU-TDOR12 MC-TDOR12
Honeywell Digital Output 240 Vac/125 Vdc Relay FTA MU-TDOR22 MC-TDOR22
Honeywell Digital Output 24 Vdc FTA MU-PDOY22 MU-TDOY22 MC-TDOY22
Honeywell Digital Output Relay FTA MU-PDOY22 MU-TDOY23 MC-TDOY23

Original And New
