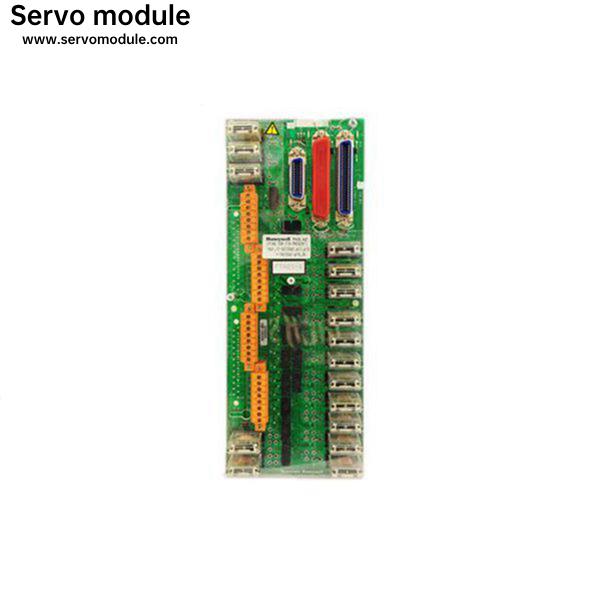

Quality New Honeywell MC-TDIY22 51204160-175Module
Introduction
The Honeywell MC-TDIY22 51204160-175 is a digital input module for use in Honeywell Distributed Control Systems (DCS) and Programmable Logic Controllers (PLCs). It is designed to provide 24 VDC isolated digital inputs for a variety of applications.
Features
24 VDC isolated digital inputs
CE compliant
Conformal coated
Suitable for use in harsh environments
Easy to install and maintain
Technical Specifications
Input voltage: 24 VDC
Input current: 2 mA per point
Input impedance: Greater than 10 MΩ
Output voltage: 0 VDC or 24 VDC
Output current: 10 mA per point
Output impedance: Less than 100 Ω
Operating temperature: -40 to 70 °C
Storage temperature: -40 to 85 °C
Humidity: 5 to 95% RH non-condensing
Vibration: 5 to 25 Hz, 0.031 in. (0.8 mm) peak-to-peak
Shock: 15 g, 11 ms half-sine pulse
HoneywellField Termination Assemblies FTA Models
|
Uncoated Model Number |
Coated Model Number |
Description |
|
MU-TAIH22 |
MC-TAIH22 |
Enhanced Power High Level /STI Analog Input FTA (16 Inputs) ** |
|
MU-TAIH02 |
MC-TAIH02 |
High Level Analog Input/STI FTA (16 Inputs) |
|
MU-TAIH12 |
MC-TAIH12 |
High Level Analog Input/STI FTA for Redundancy (16 Inputs) ** |
|
MU-TAIH03 |
MC-TAIH03 |
High Level Analog Input FTA (16 Inputs) (CE Mark) |
|
MU-TAIH13 |
MC-TAIH13 |
High Level Analog Input FTA for Redundancy (16 Inputs) (CE Mark) ** |
|
MU-TSTX03 |
MC-TSTX03 |
Smart Transmitter Interface FTA (16 Inputs) (CE Mark) |
|
MU-TSTX13 |
MC-TSTX13 |
Smart Transmitter Interface FTA for Redundancy (16 Inputs) (CE Mark) ** |
|
MU-TAIH23 |
MC-TAIH23 |
Enhanced Power High Level Analog Input FTA (16 Inputs) (CE Mark)** |
