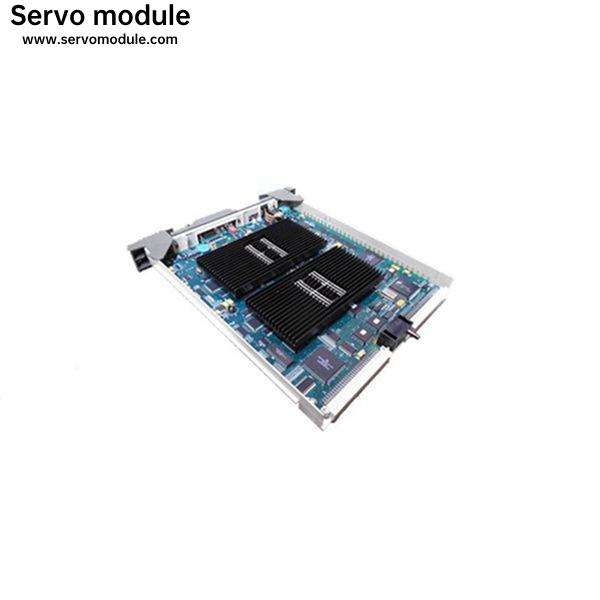

Quality New Honeywell 51155128-200Module
Introduction
The Honeywell 51155128-200 is a high-input analog module that is part of the Honeywell MU-TAH02 family of products. It is designed for use in Honeywell Distributed Control Systems (DCS) to provide analog input from field devices such as sensors and transmitters. The module has eight analog input channels that can accept a wide range of signal types, including voltage, current, and RTD. It also has a variety of features that make it suitable for use in demanding industrial applications, such as:
- High accuracy and reliability
- Wide operating temperature range
- EMI/RFI protection
- Fault detection and isolation
Eight analog input channels
Accepts a wide range of signal types
High accuracy and reliability
Wide operating temperature range
EMI/RFI protection
Fault detection and isolation
Technical Specifications
Input channels: 8
Signal types: Voltage, current, RTD
Accuracy: 0.1% of full scale
Operating temperature range: -40 to 85°C (-40 to 185°F)
Storage temperature range: -40 to 85°C (-40 to 185°F)
Humidity: 0 to 95% non-condensing
Power supply: 24 VDC
Current consumption: 100 mA
Communication: RS-485
HoneywellField Termination Assemblies FTA Models
|
Uncoated Model Number |
Coated Model Number |
Description |
|
MU-TAIH22 |
MC-TAIH22 |
Enhanced Power High Level /STI Analog Input FTA (16 Inputs) ** |
|
MU-TAIH02 |
MC-TAIH02 |
High Level Analog Input/STI FTA (16 Inputs) |
|
MU-TAIH12 |
MC-TAIH12 |
High Level Analog Input/STI FTA for Redundancy (16 Inputs) ** |
|
MU-TAIH03 |
MC-TAIH03 |
High Level Analog Input FTA (16 Inputs) (CE Mark) |
|
MU-TAIH13 |
MC-TAIH13 |
High Level Analog Input FTA for Redundancy (16 Inputs) (CE Mark) ** |
|
MU-TSTX03 |
MC-TSTX03 |
Smart Transmitter Interface FTA (16 Inputs) (CE Mark) |
|
MU-TSTX13 |
MC-TSTX13 |
Smart Transmitter Interface FTA for Redundancy (16 Inputs) (CE Mark) ** |
|
MU-TAIH23 |
MC-TAIH23 |
Enhanced Power High Level Analog Input FTA (16 Inputs) (CE Mark)** |
