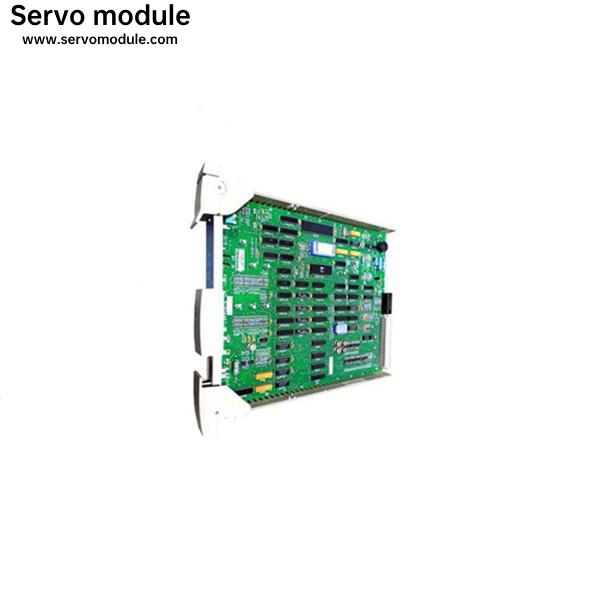

Honeywell MU-TAOX52 51304335-200 Analog Output FTA for Redundancy In Stock
Description
The Honeywell MU-TAOX52 is an analog output redundancy module that is part of the Honeywell T Series family of products. It is designed to provide redundant analog output signals to critical control systems. The module has eight redundant output channels and is screw terminal connected.
Features
Provides redundant analog output signals to critical control systems
Eight redundant output channels
Screw terminal connected
Not CE-compliant
Not conformally coated
Technical Specifications
Input Voltage: 24 VDC
Input Current: 80 mA
Output Voltage: 0 to 10 VDC or 4 to 20 mA
Output Current: 20 mA
Accuracy: ±0.1% of full scale
Resolution: 16 bits
Response Time: <250 ms
Operating Temperature: -40 to 85 °C
Storage Temperature: -55 to 100 °C
Humidity: 0 to 95% RH, non-condensing
Vibration: 5 g rms, 10 to 500 Hz
Shock: 15 g, 11 ms
EMC: EN 50081-1, EN 50082-2
HoneywellField Termination Assemblies FTA Modules
| Uncoated Model Number | Coated Model Number | Description |
| MU-TAOX12 | MC-TAOX12 | Analog Output FTA for Redundancy (8 Outputs) ** |
| MU-TAIH12 | MC-TAIH12 | High Level Analog Input/STI FTA for Redundancy (16 Inputs) ** |
| MU-TDOR22 | MC-TDOR22 | Digital Output 240 Vac/125 Vdc Relay FTA (16 Outputs) |
| MU-TDID12 | MC-TDID12 | Digital Input 24 Vdc FTA (32 Inputs) |
| MU-TAOY22 | MC-TAOY22 | Analog Output 16 FTA (16 Outputs), w/StbyMan (use ONLY w/ MU-PAOY22)** |
| MU-TLPA02 | MC-TLPA02 | LLMUX, SDI, SI Power Adapter |
| MU-TAMR04 | MC-TAMR03 | Low Level Analog Input Multiplexer RTD FTA (16 Inputs) |
| MU-TAIH22 | MC-TAIH22 | Enhanced Power High Level /STI Analog Input FTA (16 Inputs) ** |
| MU-TAIH02 | MC-TAIH02 | High Level Analog Input/STI FTA (16 Inputs) |
| MU-TAIH03 | MC-TAIH03 | High Level Analog Input FTA (16 Inputs) (CE Mark) |
| MU-TAIH13 | MC-TAIH13 | High Level Analog Input FTA for Redundancy (16 Inputs) (CE Mark) ** |
| MU-TSTX03 | MC-TSTX03 | Smart Transmitter Interface FTA (16 Inputs) (CE Mark) |
| MU-TSTX13 | MC-TSTX13 | Smart Transmitter Interface FTA for Redundancy (16 Inputs) (CE Mark) ** |
| MU-TAIH23 | MC-TAIH23 | Enhanced Power High Level Analog Input FTA (16 Inputs) (CE Mark)** |
| MU-TAIL02 | MC-TAIL02 | Low Level Analog Input FTA (8 Inputs) |
| MU-TAIL03 | MC-TAIL03 | Low Level Analog Input FTA (8 Inputs) (CE Mark) |
| MU-TAMT04 | MC-TAMT03 | Low Level Analog Input Multiplexer TC FTA (16 Inputs) |
| MU-TAMT14 | MC-TAMT13 | Low Level Analog Input Multiplexer TC FTA with Remote CJR (16 Inputs) |
| MU-GRPA01 | MC-GRPA01 | RHMUX GI/IS Power Adapter |
| MU-TRPA01 | MC-TRPA01 | RHMUX GI/NI Power Adapter |
| MU-TPIX12 | MC-TPIX12 | Pulse Input FTA (8 Inputs) |
| MU-TAOX02 | MC-TAOX02 | Analog Output FTA (8 Outputs) |
| MU-THAO11 | MC-THAO11 | Analog Output 16 FTA (16 Outputs), w/StbyMan and HART®connector (use ONLY w/ MU-PAOY22)** |
| MU-GHAO11 | MC-GHAO11 |
GI/IS Analog Output 16 FTA (16 Outputs), w/o StbyMan, w/HART®connector (use ONLY w/ MU-PAOY22)** |
| MU-TDIA12 | MC-TDIA12 | Digital Input Isolated 120 Vac FTA (32 Inputs) |
| MU-TDIA22 | MC-TDIA22 | Digital Input Isolated 240 Vac FTA (32 Inputs) |
| MU-TDIY22 | MC-TDIY22 | Digital Input 24 Vdc FTA (32 Inputs) (use ONLY w/ MU-PDIY22)** |
| MU-TDOA13 | MC-TDOA13 | Digital Output 120/240 Vac Solid-State FTA (16 Outputs) |
| MU-TDOD13 | MC-TDOD13 | Digital Output 3-30 Vdc Solid-State FTA (16 Outputs) |
| MU-TDOD14 | MC-TDOD14 | Digital Output 3-30 Vdc Solid-State FTA (16 Outputs) (CE Mark) |
| MU-TDOD23 | MC-TDOD23 | Digital Output 31-200 Vdc Solid-State (16 Outputs) |
| MU-TDON12 | MC-TDON12 | Digital Output 24 Vdc, 100 ma Nonisolated FTA (16 Outputs) |
| MU-TDOR12 | MC-TDOR12 | Digital Output 120 Vac/125 Vdc Relay FTA (16 Outputs) |
| MU-TDOY22 | MC-TDOY22 | Digital Output 24 Vdc FTA (32 Outputs) (use ONLY w/ MU-PDOY22)** |
| MU-TDOY23 | MC-TDOY23 | Digital Output Relay FTA (16 Outputs) (use two w/ MU-PDOY22)** |
