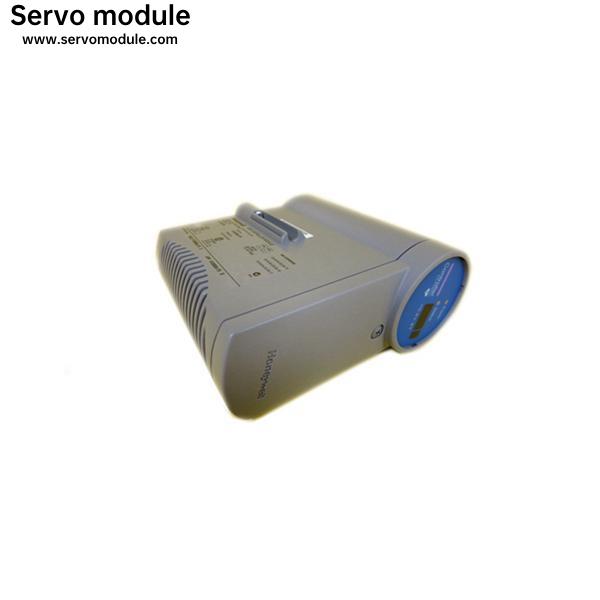

Honeywell TK-IXL061Thermocouple Input Controller In Stock
Introduction
Honeywell's newest Universal I/O module, based on Universal Channel Technology, reduces or eliminates marshalling. More importantly, it allows immediate configuration without the need for additional hardware. Click on the Demo tab to view videos describing how this new technology can reduce marshalling and equipment needed.
Specification
| Part No. | TK-IXL061 |
| Number of Points | 6 channels plus 1 cold junction channel |
| Nominal Input Voltage Ranges |
-12 mV to +78 mV -12 mV to +30 mV (high resolution range) |
| Supported Thermocouple Types | B, E, J, K, R, S, T, N, C |
| Resolution | 16 bits (1.4V typical), 0.70 on high resolution range |
| Common Mode Rejection | 120 dB @ 60 Hz, 100 dB @ 50 Hz |
| Module Update Rate for All Channels | 50 milliseconds |
| Settling Time to 5% of Full Scale | Less than 80 milliseconds |
| Open Circuit Detection Open TC Detection Time | Upscale reading 5 seconds typical |
| Channel Bandwidth | 0 to 15 Hz (-3 db) |
| Normal Mode Noise Rejection | 60 dB @ 60 Hz |
| Spare CJR Thermistor Model Number |
TC-CJRT01 (part no. 51109433-100) |
| Isolation Voltage Channel to channel User to system | 100% tested at 2546 VDC for 1s 100% tested at 2546 VDC for 1s |
| Connection Terminal Blocks | TC-TBNH, 20-position terminal block |
