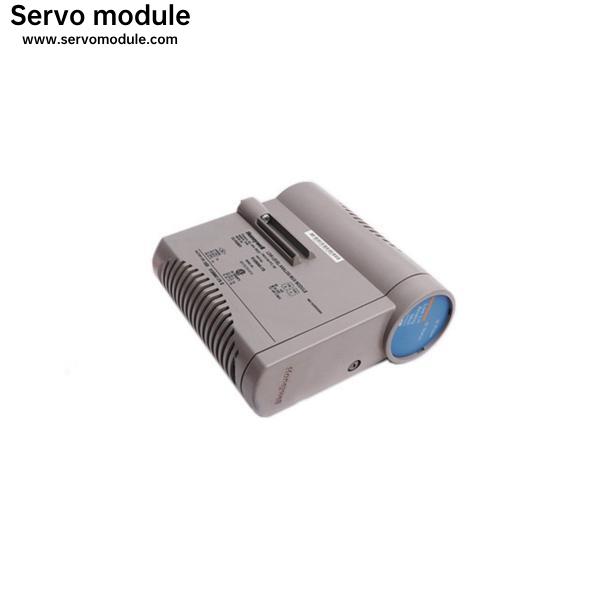

HoneywellTC-IXR061 Experion RTD Input 6-Point I/O Module
Introduction
Honeywell's newest Universal I/O module, based on Universal Channel Technology, reduces or eliminates marshalling. More importantly, it allows immediate configuration without the need for additional hardware. Click on the Demo tab to view videos describing how this new technology can reduce marshalling and equipment needed.
Specification
| Part No. | TC-IXR061 |
| Number of Points | 6 galvanically isolated channels |
| Nominal Input Voltage Ranges |
-12 mV to +78 mV -12 mV to +30 mV (high resolution range) |
| Supported Thermocouple Types | B, E, J, K, R, S, T, N, C |
| Resolution | 16 bits (1.4V typical), 0.70 on high resolution range |
| Common Mode Rejection | 120 dB @ 60 Hz, 100 dB @ 50 Hz |
| Module Update Rate for All Channels | 50 milliseconds |
| Settling Time to 5% of Full Scale | Less than 80 milliseconds |
| Open Circuit Detection Open TC Detection Time | Upscale reading 5 seconds typical |
| Channel Bandwidth | 0 to 15 Hz (-3 db) |
| Module Update Rate for All Channels | 50 milliseconds |
| Spare CJR Thermistor Model Number |
TC-CJRT01 (part no. 51109433-100) |
| Isolation Voltage Channel to channel User to system | 100% tested at 2546 VDC for 1s 100% tested at 2546 VDC for 1s |
| Connection Terminal Blocks | TC-TBNH, 20-position terminal block |
Honeywell ExperionProducts
Honeywell 51400646-100 Violet Drop Cable, 6 drops, 6-inch (152 mm) pitch, green label (cable B)
Honeywell 51202329-111 Violet Drop Cable, 6 drops, 6-inch (152 mm) pitch, yellow label (cable A)
Honeywell 51202329-110 Violet Extension Cable, 48-inches (1.2 m) long, yellow label (cable A)
Honeywell 51202329-734 Violet Extension Cable, 48-inches (1.2 m) long, green label (cable B)
Honeywell 51202329-735 Gray Header Cable, 3 drops, yellow label (cable A)
Honeywell 51202329-600 Gray Header Cable, 3 drops, green label (cable B)
Honeywell 51202329-601 Violet Header Cable, 3 drops, daisy-chain, yellow label (cable A)
Honeywell 51202329-614 Violet Header Cable, 3 drops, daisy-chain, green label (cable B)
Honeywell 51202329-615 Gray Drop Cable, 6 drops, 6-inch (152 mm) pitch, yellow label (cable A) I/O Link cable
Honeywell 51202329-100 Each I/O Link cable is available in an A version (marked yellow) and a B version
Honeywell Series C I/O Link cable parts HART Multiplexer
Honeywell Communication cables LLMux TC CE Compliant
Honeywell 51305890-175 MC-TAMT04
