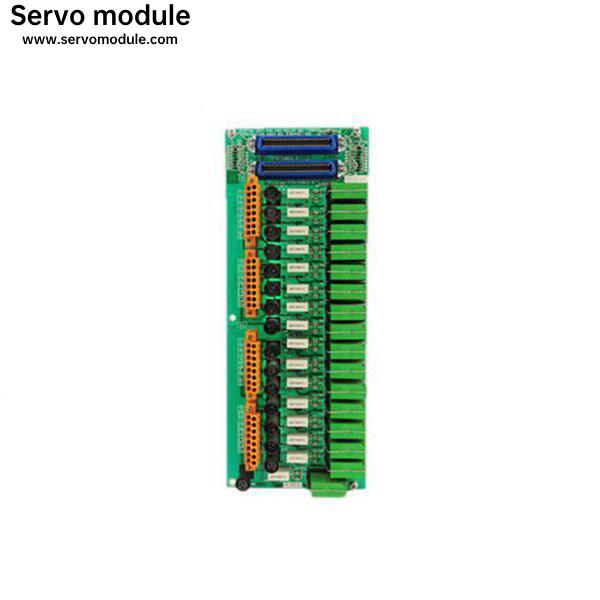

HoneywellHoneywell MU-TDOR22 51304427-100 Digital Output FTA Module
Description
All connections to and from the process are made to Field Termination Assemblies (FTA). Compression-type termination blocks (that can accept wire sizes as large as 14 AWG or ~1.6 mm) are available for all FTAs. Screw-type termination's can also be provided for most FTAs as shown in Table 1 in the “Specifications” section. The FTAs are connected to the I/O processors by cables that can be up to 50 meters in length. Three sizes of FTAs are used as shown in this table. Twenty-four Vdc transmitter and digital inputs sense power connections are provided through the standard FTA cable
HoneywellField Termination Assemblies FTA Modules
| Model Number | Non-CE Compliant Part Number | CE Compliant Part Number | FTA Type |
| MU-TDOR22 | 51304427-100 | 51309150-125 | 240 Vac/125 Vdc Relay DO |
| MU-TDOD12 | 51304423-100 | N/A | 3-30 Vdc SS DO |
| MU-TDOD13 | 51304650-100 | N/A | 3-30 Vdc SS DO |
| MU-TDOY62 | 80364013-100 | 80364013-125 | 24 Vdc Isolated DO |
| MU-TDOD14 | N/A | 51309153-125 | 3-30 Vdc SS DO |
| MU-TDOD52 | 51304423-200 | N/A | 3-30 Vdc SS DO |
| MU-TDOD53 | 51304650-200 | N/A | 3-30 Vdc SS DO |
| MU-TDOD54 | N/A | 51309153-225 | 3-30 Vdc SS DO |
| MU-TDOD22 | 51304428-100 | N/A | 31-200 Vac SS DO |
| MU-TDOD23 | N/A | 51309154-125 | 31-200 Vac SS DO |
| MU-TDOD62 | 51304428-200 | N/A | 31-200 Vac SS DO |
| MU-TDOD63 | N/A | 51309154-225 | 31-200 Vac SS DO |
| MU-TDOA12 | 51304408-100 | N/A | 120/240 Vac SS DO |
| MU-TDOA13 | 51304648-100 | 51304648-125 | 120/240 Vac SS DO |
| MU-TDOA52 | 51304408-200 | N/A | 120/240 Vac SS DO |
| MU-TDOA53 | 51304648-200 | 51304648-225 | 120/240 Vac SS DO |
| MU-TDOR12 | 51304443-100 | 51309148-125 | 120 Vac/125 Vdc Relay DO |
| MU-TDOR52 | 51304443-200 | 51309148-225 | 120 Vac/125 Vdc Relay DO |
| MU-TDOR62 | 51304427-200 | 51309150-225 | 240 Vac/125 Vdc Relay DO |
| MU-TDOY23 | 80366189-100 | 80366189-125 | 240 Vac/125 Vdc Relay DO |
| MU-TDOY63 | 80366185-100 | 80366185-125 | 240 Vac/125 Vdc Relay DO |
