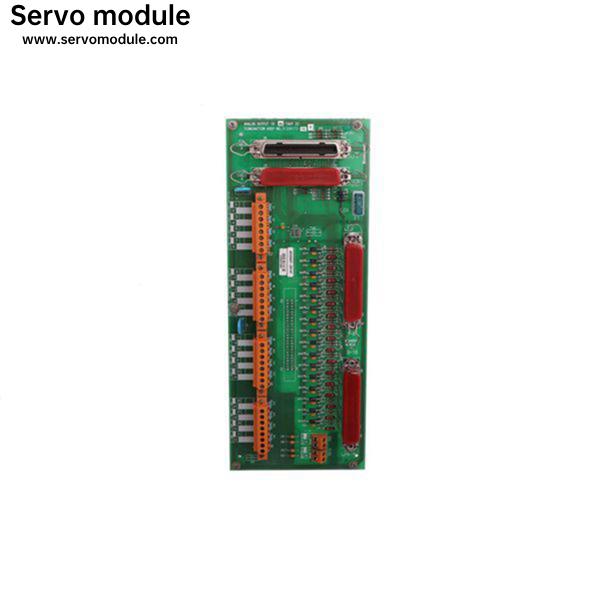

Original New HoneywellMC-TAOY22 51204172-175 Analog Output 16 FTA
Description
All connections to and from the process are made to Field Termination Assemblies (FTAs). Compression-type termination blocks (that can accept wire sizes as large as 14 AWG or ~1.6 mm) are available for all FTAs. Screw-type termination's can also be provided for most FTAs as shown in Table 1 in the “Specifications” section. The FTAs are connected to the I/O processors by cables that can be up to 50 meters in length. Three sizes of FTAs are used as shown in this table. Twenty-four Vdc transmitter and digital inputs sense power connections are provided through the standard FTA cable
HoneywellField Termination Assemblies FTA Modules
FTA Model Number
CE Compliant Part Number
Non
CE Compliant Part Number
Description
MC-TAOY22
80366177-175
80366177-150
Analog Output with compression terminals
MC-TAIH53
51309138-275
N/A
High Level Analog Input with screw terminals
MC-TAIH62
N/A
80366192-150
High Level Analog Input/STI with screw terminals
MC-TSTX03
51309140-175
N/A
Smart Transmitter Interface with Compression Term
MC-TSTX13
51309142-175
N/A
Smart Transmitter Interface with Compression Term
MC-TSTX53
51309142-275
N/A
Smart Transmitter Interface with Screw Terminals
MC-TAIL02
N/A
51304437-150
Low Level Analog Input with compression terminals
MC-TAIL03
51309202-175
N/A
Low Level Analog Input with compression terminals
MC-TAMR02
N/A
51304477-150
LLMux Analog Input RTD with compression terminals
MC-TAMR03
51309218-175
N/A
LLMux Analog Input RTD with compression terminals
MC-TAMT02
N/A
51401491-150
LLMux Analog Input TC with compression terminals
MC-TAMT03
51301491-175
N/A
LLMux Analog Input TC with compression terminals
MC-TAMT12
N/A
51401573-150
LLMux Analog Input TC with remote CJR, comp term
MC-TAMT13
51301573-175
N/A
LLMux Analog Input TC with remote CJR, comp term
MC-TAOX02
51304476-175
51304476-150
Analog Output with compression terminals
MC-TAOX12
51304335-175
51304335-150
Analog Output with compression terminals
MC-TAOX52
51304335-275
51304335-250
Analog Output with screw terminals
MC-TAOY23
80366177-275
80366177-250
Analog Output with compression terminals
MC-TAOY52
80364007-175
80364007-150
Analog Output with screw terminals
MC-TAOY53
80364007-275
80364007-250
Analog Output with screw terminals
MC-TDIA12
51304439-175
51304439-150
120 Vac Digital Input with compression terminals
MC-TDIA52
51304439-275
51304439-250
120 Vac Digital Input with fixed-screw terminals
MC-TDIA72
N/A
51303930-150
120 Vac Digital Input with removable-screw terminals
MC-TDIA22
51304431-175
51304431-150
240 Vac Digital Input with compression terminals
