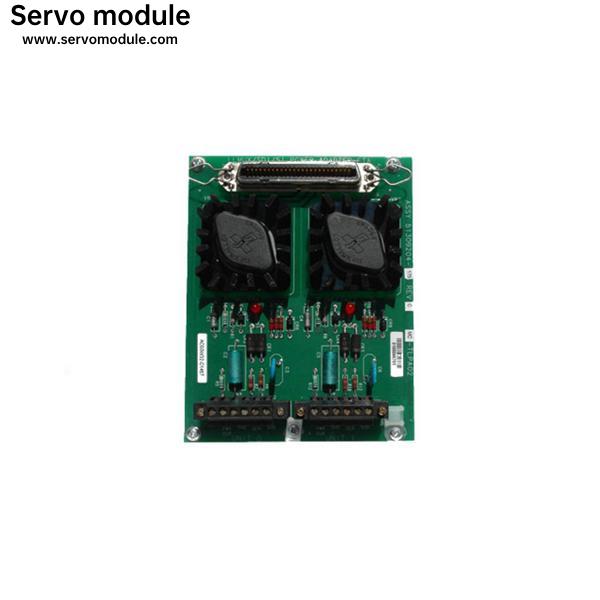

Original New MC-TDOD13 51304650-150 Digital Output FTA Module In Stock
Description
All connections to and from the process are made to Field Termination Assemblies (FTAs). Compression-type termination blocks (that can accept wire sizes as large as 14 AWG or ~1.6 mm) are available for all FTAs. Screw-type termination's can also be provided for most FTAs as shown in Table 1 in the “Specifications” section. The FTAs are connected to the I/O processors by cables that can be up to 50 meters in length. Three sizes of FTAs are used as shown in this table. Twenty-four Vdc transmitter and digital inputs sense power connections are provided through the standard FTA cable
HoneywellField Termination Assemblies FTA Modules
| FTA Model Number | Description | Non-CE Compliant Part Number | CE Compliant Part Number |
| MC-TDOD13 | 3-30 Vdc Digital Output with compression terminals | 51304650-150 | N/A |
| MC-TDOY22 | 24 Vdc Isolated Digital Output with compression term | 80366183-150 | 80366183-175 |
| MC-TDIY22 | 24 Vdc Digital Input with compression terminals | 80366180-150 | 80366180-175 |
| MC-TDIA62 | 240 Vac Digital Input with fixed-screw terminals | 51304431-250 | 51304431-275 |
| MC-TDID12 | 24 Vdc Digital Input with compression terminals | 51304441-150 | 51304441-175 |
| MC-TDID52 | 24 Vdc Digital Input with fixed-screw terminals | 51304441-250 | 51304441-275 |
| MC-TDID72 | 24 Vdc Digital Input with removable-screw terminals | 51303928-150 | N/A |
| MC-TDIY62 | 24 Vdc Digital Input with fixed-screw terminals | 80366180-250 | 80366180-275 |
| MC-TDOA13 | 120/240 Vac Solid-State Digital Output w/comp term | 51304648-150 | 51304648-175 |
| MC-TDOA53 | 120/240 Vac Solid-State Digital Output w/screw term | 51304648-250 | 51304648-275 |
| MC-TDOD14 | 3-30 Vdc Digital Output with compression terminals | N/A | 51309153-175 |
| MC-TDOD22 | 31-200 Vdc Digital Output with compression terminals | 51304428-150 | N/A |
| MC-TDOD23 | 31-200 Vdc Digital Output with compression terminals | N/A | 51309154-175 |
| MC-TDOD53 | 3-30 Vdc Digital Output with screw terminals | 51304650-250 | N/A |
| MC-TDOD54 | 3-30 Vdc Digital Output with screw terminals | N/A | 51309153-275 |
| MC-TDOD62 | 31-200 Vdc Digital Output with screw terminals | 51304428-250 | N/A |
| MC-TDOD63 | 31-200 Vdc Digital Output with screw terminals | N/A | 51309154-275 |
| MC-TDON12 | 24 Vdc Nonisolated Digital Output with comp term | 51304446-150 | N/A |
| MC-TDON52 | 24 Vdc Nonisolated Digital Output with screw term | 51304446-250 | N/A |
| MC-TDOY62 | 24 Vdc Isolated Digital Output with screw terminals | 80364013-150 | 80364013-175 |
| MC-TDOR12 | 120 Vac/125 Vdc Relay Digital Output with comp term | 51304443-150 | 51309148-175 |
| MC-TDOR52 | 120 Vac/125 Vdc Relay Digital Output with screw term | 51304443-250 | 51309148-275 |
| MC-TDOR22 | 240 Vac/125 Vdc Relay Digital Output with comp term | 51304427-150 | 51309150-175 |
| MC-TDOR62 | 240 Vac/125 Vdc Relay Digital Output with screw term | 51304427-250 | 51309150-275 |
