New Honeywell MC-TDOR22 51309150-175 FTA Digital Output Module In Stock
Description
All connections to and from the process are made to Field Termination Assemblies (FTA). Compression-type termination blocks (that can accept wire sizes as large as 14 AWG or ~1.6 mm) are available for all FTAs. Screw-type termination's can also be provided for most FTAs as shown in Table 1 in the “Specifications” section. The FTAs are connected to the I/O processors by cables that can be up to 50 meters in length. Three sizes of FTAs are used as shown in this table. Twenty-four Vdc transmitter and digital inputs sense power connections are provided through the standard FTA cable
HoneywellField Termination Assemblies FTA Modules
Coated Model Number
Uncoated Model Number
Description
MC-TDOR22
MU-TDOR22
Digital Output 240 Vac/125 Vdc Relay FTA (16 Outputs)
MC-TDID12
MU-TDID12
Digital Input 24 Vdc FTA (32 Inputs)
MC-TAOY22
MU-TAOY22
Analog Output 16 FTA (16 Outputs), w/StbyMan (use ONLY w/ MU-PAOY22)**
MC-TLPA02
MU-TLPA02
LLMUX, SDI, SI Power Adapter
MC-TAMR03
MU-TAMR04
Low Level Analog Input Multiplexer RTD FTA (16 Inputs)
MC-TAIH22
MU-TAIH22
Enhanced Power High Level /STI Analog Input FTA (16 Inputs) **
MC-TAIH02
MU-TAIH02
High Level Analog Input/STI FTA (16 Inputs)
MC-TAIH12
MU-TAIH12
High Level Analog Input/STI FTA for Redundancy (16 Inputs) **
MC-TAIH03
MU-TAIH03
High Level Analog Input FTA (16 Inputs) (CE Mark)
MC-TAIH13
MU-TAIH13
High Level Analog Input FTA for Redundancy (16 Inputs) (CE Mark) **
MC-TSTX03
MU-TSTX03
Smart Transmitter Interface FTA (16 Inputs) (CE Mark)
MC-TSTX13
MU-TSTX13
Smart Transmitter Interface FTA for Redundancy (16 Inputs) (CE Mark) **
MC-TAIH23
MU-TAIH23
Enhanced Power High Level Analog Input FTA (16 Inputs) (CE Mark)**
MC-TAIL02
MU-TAIL02
Low Level Analog Input FTA (8 Inputs)
MC-TAIL03
MU-TAIL03
Low Level Analog Input FTA (8 Inputs) (CE Mark)
MC-TAMT03
MU-TAMT04
Low Level Analog Input Multiplexer TC FTA (16 Inputs)
MC-TAMT13
MU-TAMT14
Low Level Analog Input Multiplexer TC FTA with Remote CJR (16 Inputs)
MC-GRPA01
MU-GRPA01
RHMUX GI/IS Power Adapter
MC-TRPA01
MU-TRPA01
RHMUX GI/NI Power Adapter
MC-TPIX12
MU-TPIX12
Pulse Input FTA (8 Inputs)
MC-TAOX02
MU-TAOX02
Analog Output FTA (8 Outputs)
MC-TAOX12
MU-TAOX12
Analog Output FTA for Redundancy (8 Outputs) **
MC-THAO11
MU-THAO11
Analog Output 16 FTA (16 Outputs), w/StbyMan and HART®connector (use ONLY w/ MU-PAOY22)**
MC-GHAO11
MU-GHAO11
GI/IS Analog Output 16 FTA (16 Outputs), w/o StbyMan, w/HART®connector
(use ONLY w/ MU-PAOY22)**
MC-TDIA12
MU-TDIA12
Digital Input Isolated 120 Vac FTA (32 Inputs)
MC-TDIA22
MU-TDIA22
Digital Input Isolated 240 Vac FTA (32 Inputs)
MC-TDIY22
MU-TDIY22
Digital Input 24 Vdc FTA (32 Inputs) (use ONLY w/ MU-PDIY22)**
MC-TDOA13
MU-TDOA13
Digital Output 120/240 Vac Solid-State FTA (16 Outputs)
MC-TDOD13
MU-TDOD13
Digital Output 3-30 Vdc Solid-State FTA (16 Outputs)
MC-TDOD14
MU-TDOD14
Digital Output 3-30 Vdc Solid-State FTA (16 Outputs) (CE Mark)
MC-TDOD23
MU-TDOD23
Digital Output 31-200 Vdc Solid-State (16 Outputs)
MC-TDON12
MU-TDON12
Digital Output 24 Vdc, 100 ma Nonisolated FTA (16 Outputs)
MC-TDOR12
MU-TDOR12
Digital Output 120 Vac/125 Vdc Relay FTA (16 Outputs)
MC-TDOY22
MU-TDOY22
Digital Output 24 Vdc FTA (32 Outputs) (use ONLY w/ MU-PDOY22)**
MC-TDOY23
MU-TDOY23
Digital Output Relay FTA (16 Outputs) (use two w/ MU-PDOY22)**
To See More Spare Parts Below
Honeywell MC-PAOX03 MC-TPIX12 51304084-175 Pulse Input FTA (8 Inputs)
Honeywell MC-PAIL02 Digital Input 24 Vdc FTA (32 Inputs) (use ONLY w/ MU-PDIY22)

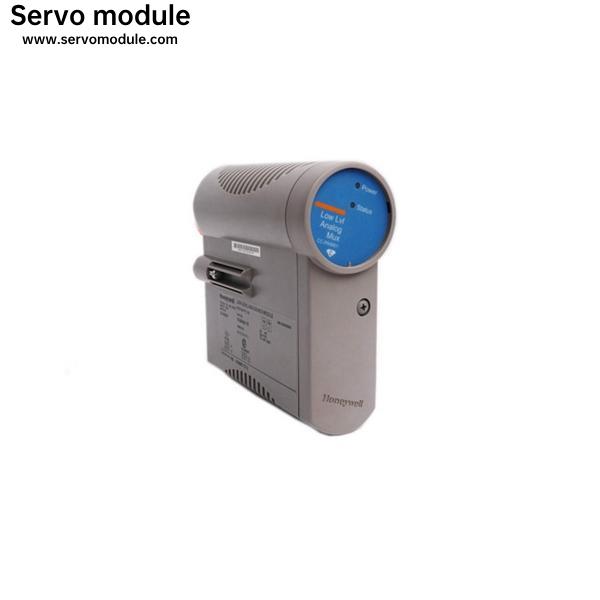

Honeywell MC-PDOX02 Low Level Analog Input Multiplexer RTD FTA (16 Inputs)
Honeywell MC-PDOY22 80363975-15051309223-175 Low Level Analog Input Multiplexer TC FTA (16 Inputs)
Honeywell MC-PDIY22 High Level Analog Input/STI FTA (16 Inputs)
Honeywell MC-TAIL12 Low Level Analog Input FTA (8 Inputs)
Honeywell MC-TPIX12 Low Level Analog Input Multiplexer RTD FTA (16 Inputs)
Honeywell MC-TDIY22 LLMUX, SDI, SI Power Adapter
Honeywell MC-TDOD13 FTA Model，Low Level Analog Input
Low Level Analog Input FTA (8 Inputs)
Honeywell MC-TDOY23
Enhanced Power High Level /STI Analog Input FTA (16 Inputs)
Honeywell MC-TDID12 Pulse Input FTA (8 Inputs)

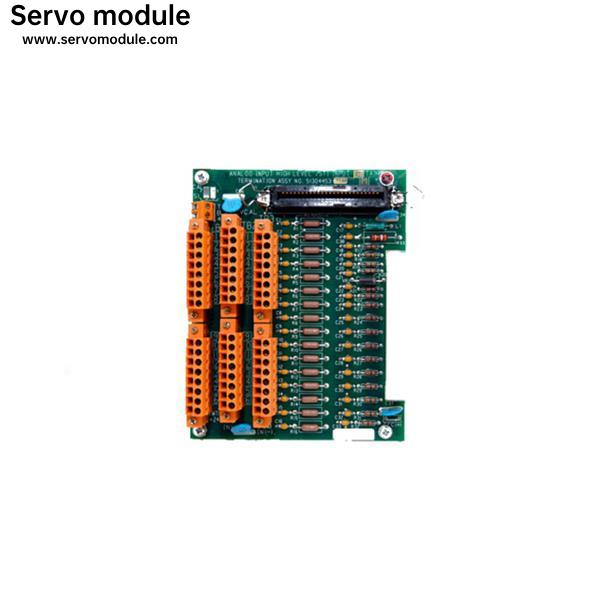

Honeywell MC-TDOR22 51309150-175 High Level Analog Input/STI FTA (16 Inputs)
