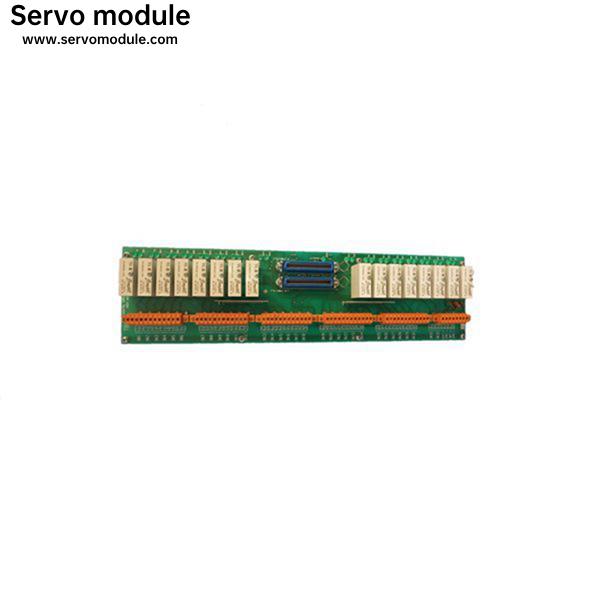

HoneywellMU-TDID12 53104441-100DI24 Vdc FTA In Stock
Description
All connections to and from the process are made to Field Termination Assemblies (FTA). Compression-type termination blocks (that can accept wire sizes as large as 14 AWG or ~1.6 mm) are available for all FTAs. Screw-type termination's can also be provided for most FTAs as shown in Table 1 in the “Specifications” section. The FTAs are connected to the I/O processors by cables that can be up to 50 meters in length. Three sizes of FTAs are used as shown in this table. Twenty-four Vdc transmitter and digital inputs sense power connections are provided through the standard FTA cable
HoneywellField Termination Assemblies FTA Modules
| FTA Model Number | Non-CE Compliant Part Number | CE Compliant Part Number | FTA Type |
| MU-TAIH23 | N/A | 80369165-125 | HLAI |
| MU-TAIH53 | N/A | 51309138-225 | HLAI |
| MU-TSTX03 | N/A | 51309136-125 | STI |
| MU-TSTX13 | N/A | 51309138-125 | STI |
| MU-TSTX53 | N/A | 51309138-225 | STI |
| MU-TAOX02 | 51304476-100 | 51304476-125 | AO |
| MU-TAOX12 | 51304335-100 | 51304335-125 | AO |
| MU-TAOX52 | 51304335-200 | 51304335-225 | AO |
| MU-TAOY22 | 80366177-100 | 80366481-125 | AO |
| MU-TAOY23 | 80366177-200 | N/A | AO |
| MU-TAOY52 | 80364007-100 | 80366484-125 | AO |
| MU-TAOY53 | 80364007-200 | N/A | AO |
| MU-TDID12 | 51304441-100 | 51304441-125 | 24 Vdc DI |
| MU-TDID52 | 51304441-200 | 51304441-225 | 24 Vdc DI |
| MU-TDID72 | 51303928-100 | N/A | 24 Vdc DI |
| MU-TDIY22 | 80366180-100 | 80366180-125 | 24 Vdc DI |
| MU-TDIY62 | 80364010-100 | 80364010-125 | 24 Vdc DI |
| MU-TDIA12 | 51304439-100 | 51304439-125 | 120 Vac DI |
| MU-TDIA52 | 51304439-200 | 51304439-225 | 120 Vac DI |
| MU-TDIA72 | 51303930-100 | N/A | 120 Vac DI |
| MU-TDIA22 | 51304431-100 | 51304431-125 | 240 Vac DI |
| MU-TDIA62 | 51304431-200 | 51304431-225 | 240 Vac DI |
| MU-TDON12 | 51304446-100 | N/A | 24 Vdc Nonisolated DO |
| MU-TDON52 | 51304446-200 | N/A | 24 Vdc Nonisolated DO |
| MU-TDOY22 | 80366183-100 | 80366183-125 | 24 Vdc Isolated DO |
