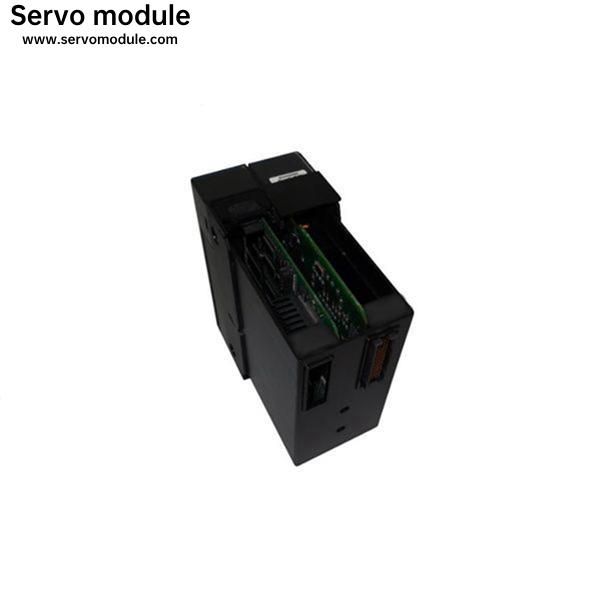

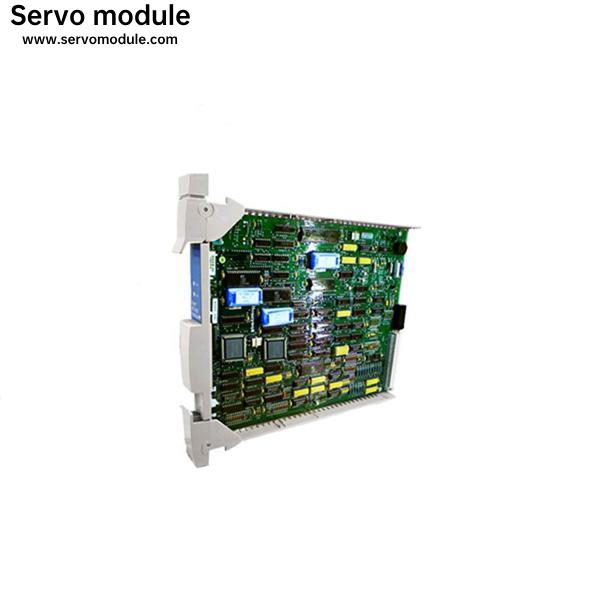

FSC 10020/1/2 Module

Operation and maintenance performance

Safety Manager™ unifies critical process data and information with the process control information, allowing single window access for operation and maintenance. When connected to the Experion Fault Tolerant Ethernet (FTE) network via TÜV SIL3 approved Universal Safety Interfaces (USI), multiple Safety Managers are unified into a single safety system architecture. Extensive use of Ethernet for communication enables fast, safe and reliable data exchange with Experion, enhancing operator and maintenance performance. Additionally, with inherent extensive system self-testing and diagnostic capability, Safety Manager extends the system proof test interval, reducing operational and maintenance costs.

PlantScape Integration

Safety Manager™ supports the integration of Safety Manager into PlantScape, which combines Honeywell’s safety controller with its equally reliable hybrid control system. The integration is realized through the Safety Manager Universal Safety Interface module, which is placed in the control processor of the Safety Manager controller. This dedicated interface module makes Safety Manager an integrated part of the PlantScape system architecture, which means that Safety Manager related information, can easily be exchanged between Safety Manager and PlantScape. This allows information to be shared and made available on the PlantScape server displays.

Safety Manager integrates the sequence-of-event (SOE) features as supported by the Safety Manager controller into the PlantScape system. Safety Manager supports SOE for digital inputs and outputs, analog inputs and outputs, and marker points. Each tag name that has been “SOE-enabled” is time-stamped by Safety Manager and reported to the PlantScape server, where it is incorporated into the standard PlantScape SOE table. Standard SOE displays are available to view the events as they are reported. Safety Manager integration into PlantScape requires PlantScape Release 300 or higher.
