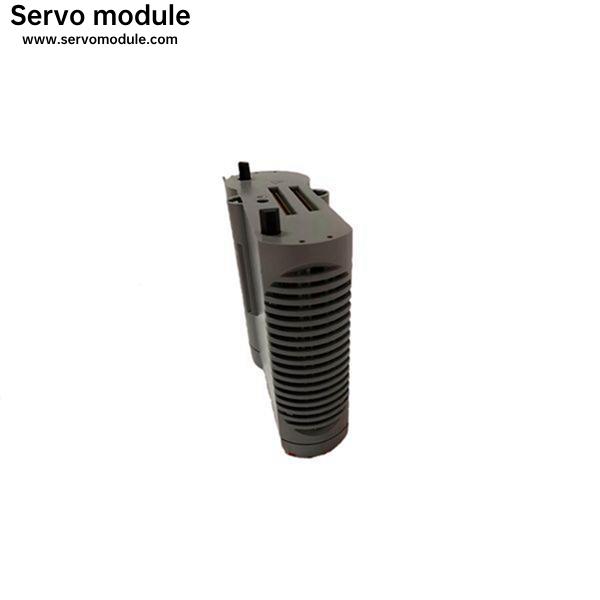

HONEYWELL 10105/2/1 INPUT MODULE,ANALOG,36VDC,16 CHANNEL

Redundant IO configurations

Redundant IO configurations can be used in Safety Manager with a redundant Controller.10105/2/1 In this fully redundant configuration, each Control Processor has its own IO system to which it has exclusive access. Each Control Processor reads its own input interfaces once every program cycle.10105/2/1After input matching, both Control Processors execute the user-defined control program and update their output interfaces according to the results. Before setting,10105/2/1the Control Processors compare the calculated output results to ensure identical operation. Redundant IO configurations are typically used for safety functions that require optimal availability.10105/2/1With Safety Manager R120, also Analog Outputs can be used in a redundant topology.

Available interfaces are:

In the Safety Manager Guides an approved basic Fire and Gas Safety application is included. This application provides a Fire and Gas Safety Solution that can easily be integrated into Honeywell’s Experion™ PKS,10105/2/1Honeywell’s TotalPlant Solution (TPS) system or into Honeywell’s PlantScape system. The basic application can be developed and adjusted easily to design a project specific Fire and Gas Safety Solution.

The integrated layer of the F&G solution within Experion, TPS or PlantScape contains the integrated alarm listing and safety historian functionality that records all detected alarms, all actions initiated by the F&G Safety system and all actions executed by this system or connected integrated sub-systems.10105/2/1This layer also shows the actual situation of the F&G application by using overall plant displays and various detailed area displays that contain locations and actual status of all connected F&G field detectors.
