HIMACPU01 Processor Module

Introduction

The modular HIMatrix F60 system described in this manual is safety-related and can be used for various purposes. The following conditions must be met to safely install and start up the HIMatrix automation devices, and to ensure safety during their operation and maintenance: ƒ Knowledge of regulations. ƒ Proper technical implementation of the safety instructions detailed in this manual performed by qualified personnel. HIMA will not be held liable for severe personal injuries, damage to property or the surroundings caused by any of the following: unqualified personnel working on or with the devices, de-activation or bypassing of safety functions, or failure to comply with the instructions detailed in this manual (resulting in faults or impaired safety functionality). HIMatrix automation devices have been developed, manufactured and tested in compliance with the pertinent safety standards and regulations. They may only be used for the intended applications under the specified environmental conditions and only in connection with approved external devices.

Hima Main Serise:

1. CPU:F8650X, F8650E, F8641
2. Power Distribution Module:F7130A, F7130, F7131, F7133
3. Communication MODULE Coprocessor MODULE；F8621A, F8627X, F8628, F8628X

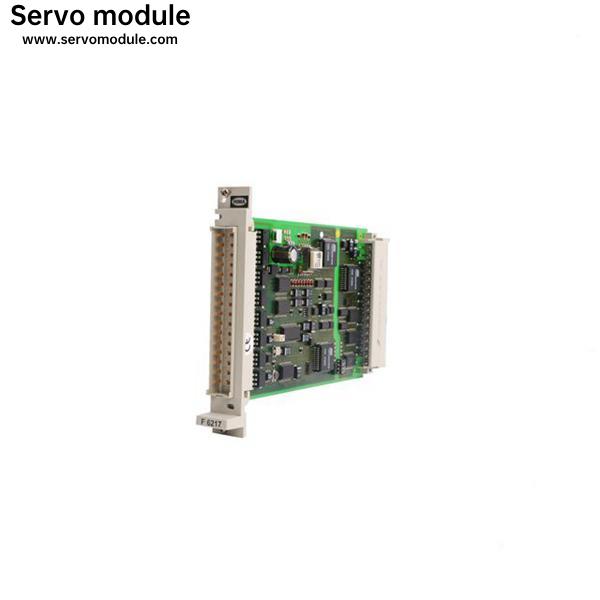

4. Input Module：F3221, F3222, F3223, F3224, F3236, F3237,F6208, F6214, F6215, F6216, F6216A,F6217, F6220, F6221
5. OUTPUT MODULE:F3330, F3331, F3332, F3333, F3334,F3322, F7126, F6705,F1DI1601, F3DIO8/801, F2DO1602, F3DIO20/802,F3AIO8/401, F60GEH01, F60PS01, F60DIO24/1601, F60DI3201,Z7116, Z7126, Z7127, Z7138, Z7128
6. I/O bus link module block:F7553
