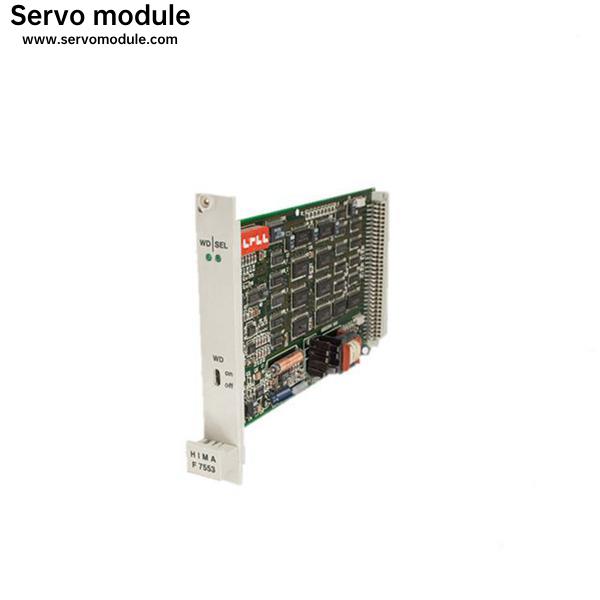

HIMA F7553 I/O BUS COUPLING MODULE NEW IN BOX

Description

The coupling module contains the monitoring of the 5 V supply of the I/O subrack and transmits a corresponding status signal to the central module. The module is automatically tested during operation. The LED WD on the front plate shows the existing safety-related watchdog signal. By the second LED SEL the access to the I/O modules of the appertaining I/O subrack is signaled. Via the recessed WD switch the watchdog signal can be switched off for the appertaining I/O subrack to change the coupling module F 7553 without triggering an error stop for the -MS and -HS systems.

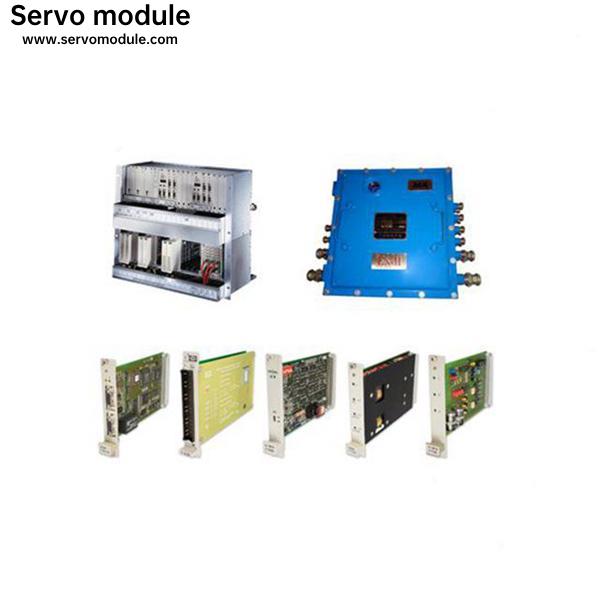

Hima Main Serise:

1. CPU:F8650X, F8650E, F8641
2. Power Distribution Module:F7130A, F7130, F7131, F7133
3. Communication MODULE Coprocessor MODULE；F8621A, F8627X, F8628, F8628X

4. Input Module：F3221, F3222, F3223, F3224, F3236, F3237,F6208, F6214, F6215, F6216, F6216A,F6217, F6220, F6221
5. OUTPUT MODULE:F3330, F3331, F3332, F3333, F3334,F3322, F7126, F6705,F1DI1601, F3DIO8/801, F2DO1602, F3DIO20/802,F3AIO8/401, F60GEH01, F60PS01, F60DIO24/1601, F60DI3201,Z7116, Z7126, Z7127, Z7138, Z7128
6. I/O bus link module block:F7553
