Hima F7126-eNew And Oringinal Module
Introduction

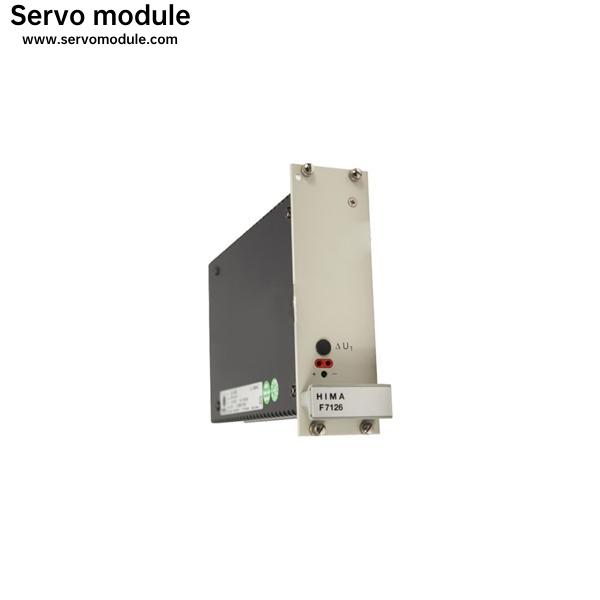

The HIMA F7126-e is a three-phase power supply module designed to provide a stable and reliable 5VDC power supply for safety-critical industrial automation applications. It is commonly used to power safety PLCs, I/O modules, sensors, and actuators. The module features a robust design with overvoltage, current limitation, and short circuit protection to ensure the safety and reliability of the connected equipment.
Key Features:
- Three-phase input: Compatible with various power supply networks.
- Isolated DC/DC conversion: Provides galvanic isolation between the input and output for enhanced safety.
- Adjustable output voltage: Allows for fine-tuning to meet specific application requirements.
- Overload and short circuit protection: Protects the module and connected equipment from damage.
- Compact and modular design: Easy to install and maintain.
- Wide operating temperature range: Suitable for harsh industrial environments.
- Certified for safety-critical applications: Meets stringent safety standards.
- Input voltage: Three-phase AC, typically 230V or 400V
- Output voltage: 5VDC ± 0.5V (adjustable)
- Output current: 10A (current limited)
- Efficiency: High efficiency for minimal power loss
- Mounting: DIN rail or panel mounting
- Dimensions and weight: Refer to the product datasheet for specific dimensions and weight
